Joint PGI of Gravity + Magnetic on an Octree mesh using full petrophysical information

%matplotlib inline

from discretize import TreeMesh
from discretize.utils import active_from_xyz
import matplotlib.pyplot as plt
import numpy as np
import simpeg.potential_fields as pf
from simpeg import (
    data_misfit,
    directives,
    inverse_problem,
    inversion,
    maps,
    optimization,
    regularization,
    utils,
)
from simpeg.utils import io_utils

# Load Mesh
mesh_file = io_utils.download(
    "https://storage.googleapis.com/simpeg/pgi_tutorial_assets/mesh_tutorial.ubc"
)
mesh = TreeMesh.read_UBC(mesh_file)

# Load True geological model for comparison with inversion result
true_geology_file = io_utils.download(
    "https://storage.googleapis.com/simpeg/pgi_tutorial_assets/geology_true.mod"
)
true_geology = mesh.read_model_UBC(true_geology_file)

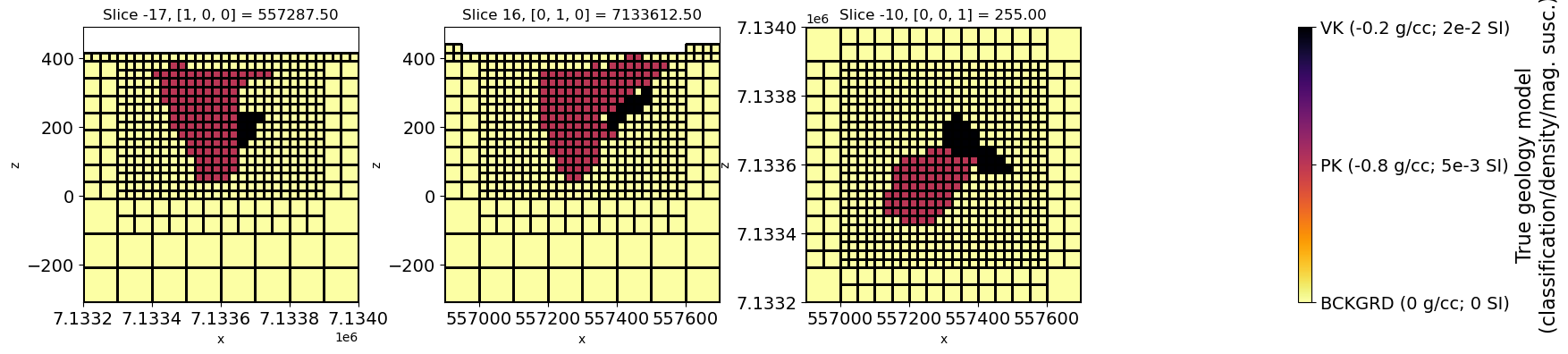

# Plot true geology model
fig, ax = plt.subplots(1, 4, figsize=(20, 4))
ticksize, labelsize = 14, 16
for _, axx in enumerate(ax):
    axx.set_aspect(1)
    axx.tick_params(labelsize=ticksize)
mesh.plot_slice(
    true_geology,
    normal="X",
    ax=ax[0],
    ind=-17,
    clim=[0, 2],
    pcolor_opts={"cmap": "inferno_r"},
    grid=True,
)
mesh.plot_slice(
    true_geology,
    normal="Y",
    ax=ax[1],
    clim=[0, 2],
    pcolor_opts={"cmap": "inferno_r"},
    grid=True,
)
geoplot = mesh.plot_slice(
    true_geology,
    normal="Z",
    ax=ax[2],
    clim=[0, 2],
    ind=-10,
    pcolor_opts={"cmap": "inferno_r"},
    grid=True,
)
geocb = plt.colorbar(geoplot[0], cax=ax[3], ticks=[0, 1, 2])
geocb.set_label(
    "True geology model\n(classification/density/mag. susc.)", fontsize=labelsize
)
geocb.set_ticklabels(
    ["BCKGRD (0 g/cc; 0 SI)", "PK (-0.8 g/cc; 5e-3 SI)", "VK (-0.2 g/cc; 2e-2 SI)"]
)
geocb.ax.tick_params(labelsize=ticksize)
ax[3].set_aspect(10)
plt.show()

# Load geophysical data
data_grav_file = io_utils.download(
    "https://storage.googleapis.com/simpeg/pgi_tutorial_assets/gravity_data.obs"
)
data_grav = io_utils.read_grav3d_ubc(data_grav_file)
data_mag_file = io_utils.download(
    "https://storage.googleapis.com/simpeg/pgi_tutorial_assets/magnetic_data.obs"
)
data_mag = io_utils.read_mag3d_ubc(data_mag_file)

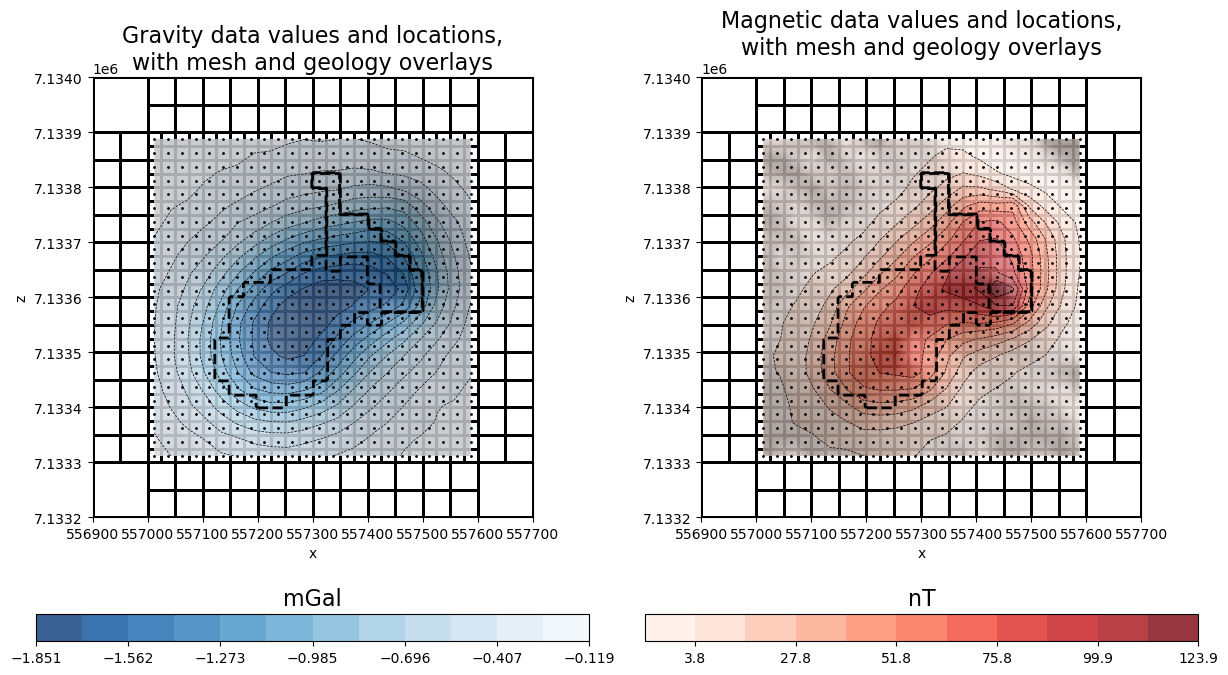

# plot data and mesh
fig, ax = plt.subplots(2, 2, figsize=(15, 10))
ax = ax.reshape(-1)
plt.gca().set_aspect("equal")
plt.gca().set_xlim(
    [
        data_mag.survey.receiver_locations[:, 0].min(),
        data_mag.survey.receiver_locations[:, 0].max(),
    ],
)
plt.gca().set_ylim(
    [
        data_mag.survey.receiver_locations[:, 1].min(),
        data_mag.survey.receiver_locations[:, 1].max(),
    ],
)
mesh.plot_slice(
    np.ones(mesh.nC),
    normal="Z",
    ind=int(-10),
    grid=True,
    pcolor_opts={"cmap": "Greys"},
    ax=ax[0],
)
mm = utils.plot2Ddata(
    data_grav.survey.receiver_locations,
    -data_grav.dobs,
    ax=ax[0],
    level=True,
    nx=20,
    ny=20,
    dataloc=True,
    ncontour=12,
    shade=True,
    contourOpts={"cmap": "Blues_r", "alpha": 0.8},
    levelOpts={"colors": "k", "linewidths": 0.5, "linestyles": "dashed"},
)
ax[0].set_aspect(1)
ax[0].set_title(
    "Gravity data values and locations,\nwith mesh and geology overlays", fontsize=16
)
plt.colorbar(mm[0], cax=ax[2], orientation="horizontal")
ax[2].set_aspect(0.05)
ax[2].set_title("mGal", fontsize=16)
mesh.plot_slice(
    np.ones(mesh.nC),
    normal="Z",
    ind=int(-10),
    grid=True,
    pcolor_opts={"cmap": "Greys"},
    ax=ax[1],
)
mm = utils.plot2Ddata(
    data_mag.survey.receiver_locations,
    data_mag.dobs,
    ax=ax[1],
    level=True,
    nx=20,
    ny=20,
    dataloc=True,
    ncontour=11,
    shade=True,
    contourOpts={"cmap": "Reds", "alpha": 0.8},
    levelOpts={"colors": "k", "linewidths": 0.5, "linestyles": "dashed"},
)
ax[1].set_aspect(1)
ax[1].set_title(
    "Magnetic data values and locations,\nwith mesh and geology overlays", fontsize=16
)
plt.colorbar(mm[0], cax=ax[3], orientation="horizontal")
ax[3].set_aspect(0.05)
ax[3].set_title("nT", fontsize=16)
# overlay true geology model for comparison
indz = -9
indslicezplot = mesh.gridCC[:, 2] == mesh.cell_centers_z[indz]
for i in range(2):
    utils.plot2Ddata(
        mesh.gridCC[indslicezplot][:, [0, 1]],
        true_geology[indslicezplot],
        nx=200,
        ny=200,
        contourOpts={"alpha": 0},
        clim=[0, 2],
        ax=ax[i],
        level=True,
        ncontour=2,
        levelOpts={"colors": "k", "linewidths": 2, "linestyles": "--"},
        method="nearest",
    )
plt.subplots_adjust(hspace=-0.25, wspace=0.1)
plt.show()

# Load Topo
topo_file = io_utils.download(
    "https://storage.googleapis.com/simpeg/pgi_tutorial_assets/CDED_Lake_warp.xyz"
)
topo = np.genfromtxt(topo_file, skip_header=1)
# find the active cells
actv = active_from_xyz(mesh, topo, "CC")
# Create active map to go from reduce set to full
ndv = np.nan
actvMap = maps.InjectActiveCells(mesh, actv, ndv)
nactv = int(actv.sum())

# Create simulations and data misfits
# Wires mapping
wires = maps.Wires(("den", actvMap.nP), ("sus", actvMap.nP))
gravmap = actvMap * wires.den
magmap = actvMap * wires.sus
idenMap = maps.IdentityMap(nP=nactv)
# Grav problem
simulation_grav = pf.gravity.simulation.Simulation3DIntegral(
    survey=data_grav.survey,
    mesh=mesh,
    rhoMap=wires.den,
    active_cells=actv,
    engine="choclo",
)
dmis_grav = data_misfit.L2DataMisfit(data=data_grav, simulation=simulation_grav)
# Mag problem
simulation_mag = pf.magnetics.simulation.Simulation3DIntegral(
    survey=data_mag.survey,
    mesh=mesh,
    chiMap=wires.sus,
    active_cells=actv,
    engine="choclo",
)
dmis_mag = data_misfit.L2DataMisfit(data=data_mag, simulation=simulation_mag)

# Joint data misfit
dmis = 0.5 * dmis_grav + 0.5 * dmis_mag

# initial model
m0 = np.r_[-1e-4 * np.ones(actvMap.nP), 1e-4 * np.ones(actvMap.nP)]

gmmref = utils.WeightedGaussianMixture(
    n_components=3,  # number of rock units: bckgrd, PK, HK
    mesh=mesh,  # inversion mesh
    actv=actv,  # actv cells
    covariance_type="diag",  # diagonal covariances
)
# required: initialization with fit
# fake random samples, size of the mesh, number of physical properties: 2 (density and mag.susc)
rng = np.random.default_rng(seed=518936)
gmmref.fit(rng.normal(size=(nactv, 2)))
# set parameters manually
# set phys. prop means for each unit
gmmref.means_ = np.c_[
    [0.0, 0.0],  # BCKGRD density contrast and mag. susc
    [-0.8, 0.005],  # PK
    [-0.2, 0.02],  # HK
].T
# set phys. prop covariances for each unit
gmmref.covariances_ = np.array(
    [[6e-04, 3.175e-07], [2.4e-03, 1.5e-06], [2.4e-03, 1.5e-06]]
)
# important after setting cov. manually: compute precision matrices and cholesky
gmmref.compute_clusters_precisions()
# set global proportions; low-impact as long as not 0 or 1 (total=1)
gmmref.weights_ = np.r_[0.9, 0.075, 0.025]

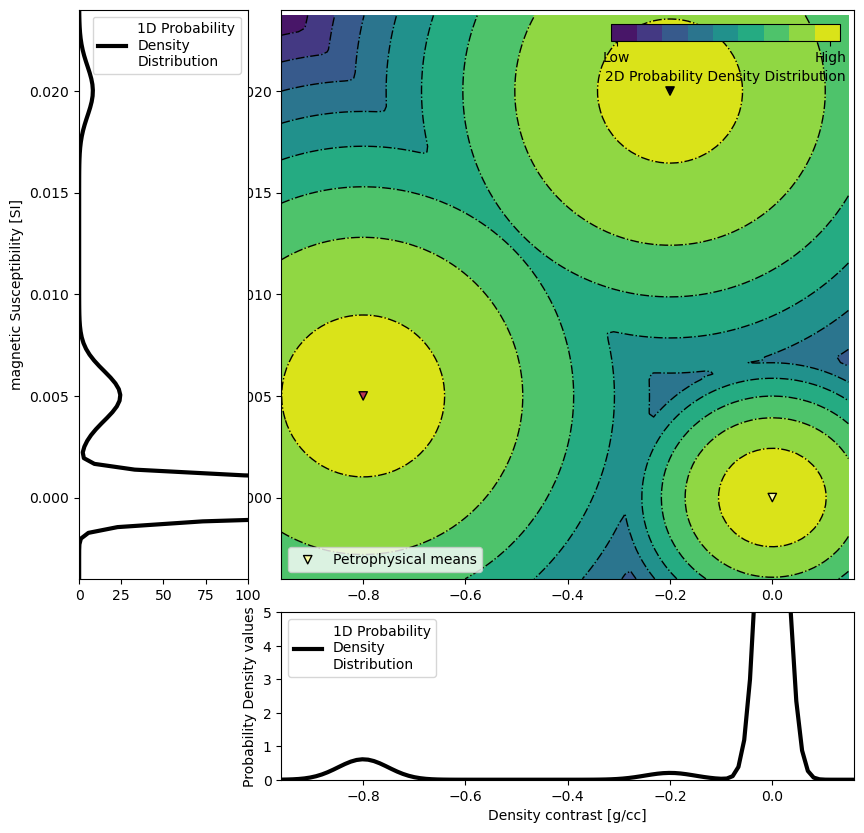

# Plot the 2D GMM
ax = gmmref.plot_pdf(flag2d=True)
ax[0].set_xlabel("Density contrast [g/cc]")
ax[0].set_ylim([0, 5])
ax[2].set_ylabel("magnetic Susceptibility [SI]")
ax[2].set_xlim([0, 100])
plt.show()

# Sensitivity weighting
wr_grav = np.sum(simulation_grav.G**2.0, axis=0) ** 0.5 / (mesh.cell_volumes[actv])
wr_grav = wr_grav / np.max(wr_grav)

wr_mag = np.sum(simulation_mag.G**2.0, axis=0) ** 0.5 / (mesh.cell_volumes[actv])
wr_mag = wr_mag / np.max(wr_mag)

# create joint PGI regularization with smoothness
reg = regularization.PGI(
    gmmref=gmmref,
    mesh=mesh,
    wiresmap=wires,
    maplist=[idenMap, idenMap],
    active_cells=actv,
    alpha_pgi=1.0,
    alpha_x=1.0,
    alpha_y=1.0,
    alpha_z=1.0,
    alpha_xx=0.0,
    alpha_yy=0.0,
    alpha_zz=0.0,
    # use the classification of the initial model (here, all background unit)
    # as initial reference model
    reference_model=utils.mkvc(
        gmmref.means_[gmmref.predict(m0.reshape(actvMap.nP, -1))]
    ),
    weights_list=[wr_grav, wr_mag],  # weights each phys. prop. by correct sensW
)

# Directives
# Add directives to the inversion
# ratio to use for each phys prop. smoothness in each direction;
# roughly the ratio of the order of magnitude of each phys. prop.
alpha0_ratio = np.r_[
    1e-4 * np.ones(len(reg.objfcts[1].objfcts[1:])),
    1e-4 * 100.0 * np.ones(len(reg.objfcts[2].objfcts[1:])),
]
Alphas = directives.AlphasSmoothEstimate_ByEig(alpha0_ratio=alpha0_ratio, verbose=True)
# initialize beta and beta/alpha_pgi schedule
beta = directives.BetaEstimate_ByEig(beta0_ratio=1e-2)
betaIt = directives.PGI_BetaAlphaSchedule(
    verbose=True,
    coolingFactor=2.0,
    tolerance=0.2,
    progress=0.2,
)
# geophy. and petro. target misfits
targets = directives.MultiTargetMisfits(
    verbose=True,
)
# add learned mref in smooth once stable
MrefInSmooth = directives.PGI_AddMrefInSmooth(
    wait_till_stable=True,
    verbose=True,
)
# update the parameters in smallness (L2-approx of PGI)
update_smallness = directives.PGI_UpdateParameters(
    update_gmm=False  # keep GMM model fixed
)
# pre-conditioner
update_Jacobi = directives.UpdatePreconditioner()
# iteratively balance the scaling of the data misfits
scaling_init = directives.ScalingMultipleDataMisfits_ByEig(chi0_ratio=[1.0, 100.0])
scale_schedule = directives.JointScalingSchedule(verbose=True)

# Create inverse problem
# Optimization
# set lower and upper bounds
lowerbound = np.r_[-2.0 * np.ones(actvMap.nP), 0.0 * np.ones(actvMap.nP)]
upperbound = np.r_[0.0 * np.ones(actvMap.nP), 1e-1 * np.ones(actvMap.nP)]
opt = optimization.ProjectedGNCG(
    maxIter=30,
    lower=lowerbound,
    upper=upperbound,
    maxIterLS=20,
    cg_maxiter=100,
    cg_rtol=1e-4,
)
# create inverse problem
invProb = inverse_problem.BaseInvProblem(dmis, reg, opt)
inv = inversion.BaseInversion(
    invProb,
    # directives: evaluate alphas (and data misfits scales) before beta
    directiveList=[
        Alphas,
        scaling_init,
        beta,
        update_smallness,
        targets,
        scale_schedule,
        betaIt,
        MrefInSmooth,
        update_Jacobi,
    ],
)

# invert
pgi_model = inv.run(m0)

# Extract the results
density_model = gravmap * pgi_model
magsus_model = magmap * pgi_model
quasi_geology_model = actvMap * reg.objfcts[0].compute_quasi_geology_model()

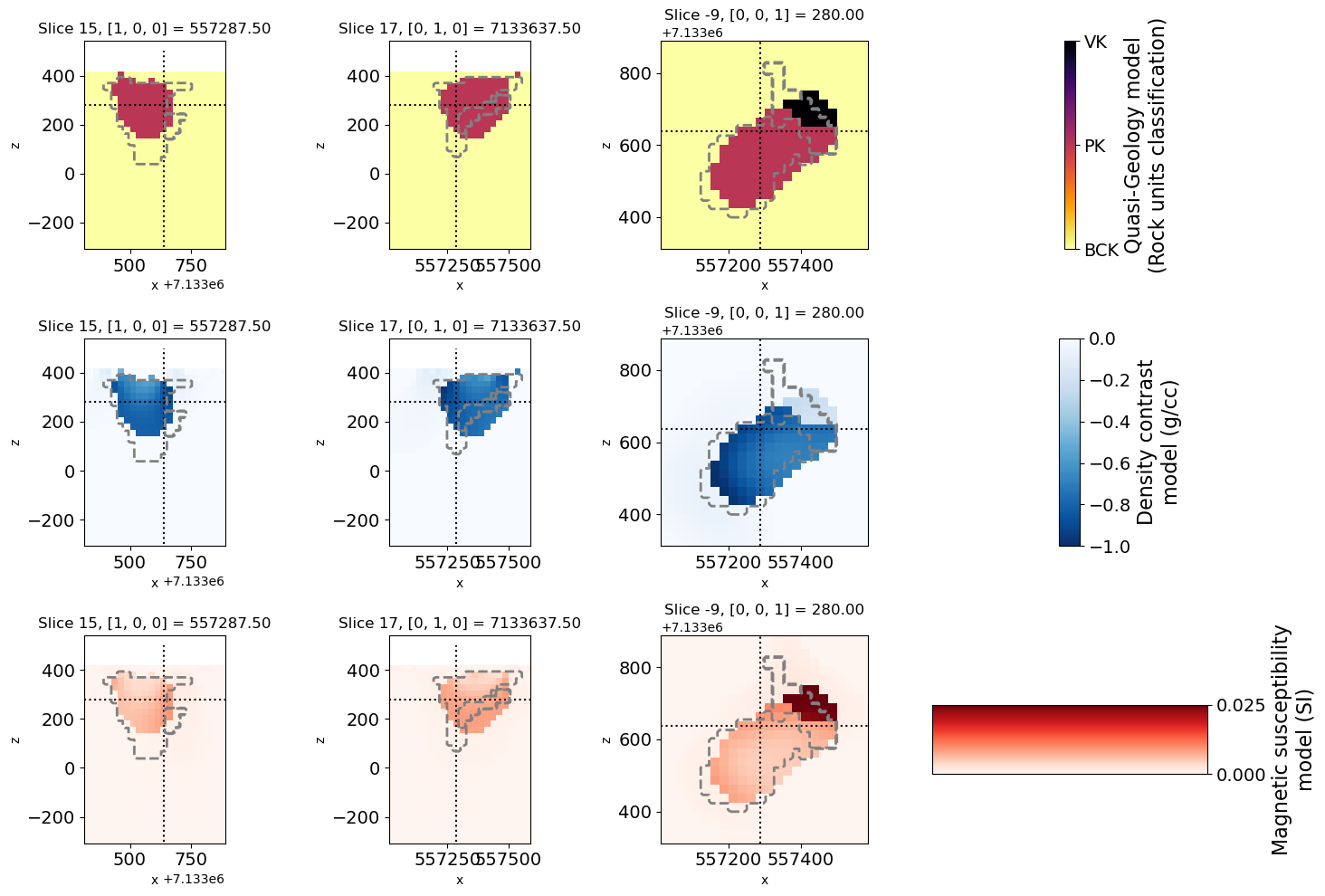

# Plot the result with full petrophysical information
fig, ax = plt.subplots(3, 4, figsize=(15, 10))
for _, axx in enumerate(ax):
    for _, axxx in enumerate(axx):
        axxx.set_aspect(1)
        axxx.tick_params(labelsize=ticksize)

indx = 15
indy = 17
indz = -9
# geology model
mesh.plot_slice(
    quasi_geology_model,
    normal="X",
    ax=ax[0, 0],
    clim=[0, 2],
    ind=indx,
    pcolor_opts={"cmap": "inferno_r"},
)
mesh.plot_slice(
    quasi_geology_model,
    normal="Y",
    ax=ax[0, 1],
    clim=[0, 2],
    ind=indy,
    pcolor_opts={"cmap": "inferno_r"},
)
geoplot = mesh.plot_slice(
    quasi_geology_model,
    normal="Z",
    ax=ax[0, 2],
    clim=[0, 2],
    ind=indz,
    pcolor_opts={"cmap": "inferno_r"},
)
geocb = plt.colorbar(geoplot[0], cax=ax[0, 3], ticks=[0, 1, 2])
geocb.set_ticklabels(["BCK", "PK", "VK"])
geocb.set_label("Quasi-Geology model\n(Rock units classification)", fontsize=16)
ax[0, 3].set_aspect(10)

# gravity model
mesh.plot_slice(
    density_model,
    normal="X",
    ax=ax[1, 0],
    clim=[-1, 0],
    ind=indx,
    pcolor_opts={"cmap": "Blues_r"},
)
mesh.plot_slice(
    density_model,
    normal="Y",
    ax=ax[1, 1],
    clim=[-1, 0],
    ind=indy,
    pcolor_opts={"cmap": "Blues_r"},
)
denplot = mesh.plot_slice(
    density_model,
    normal="Z",
    ax=ax[1, 2],
    clim=[-1, 0],
    ind=indz,
    pcolor_opts={"cmap": "Blues_r"},
)
dencb = plt.colorbar(denplot[0], cax=ax[1, 3])
dencb.set_label("Density contrast\nmodel (g/cc)", fontsize=16)
ax[1, 3].set_aspect(10)

# magnetic model
mesh.plot_slice(
    magsus_model,
    normal="X",
    ax=ax[2, 0],
    clim=[0, 0.025],
    ind=indx,
    pcolor_opts={"cmap": "Reds"},
)
mesh.plot_slice(
    magsus_model,
    normal="Y",
    ax=ax[2, 1],
    clim=[0, 0.025],
    ind=indy,
    pcolor_opts={"cmap": "Reds"},
)
susplot = mesh.plot_slice(
    magsus_model,
    normal="Z",
    ax=ax[2, 2],
    clim=[0, 0.025],
    ind=indz,
    pcolor_opts={"cmap": "Reds"},
)
suscb = plt.colorbar(susplot[0], cax=ax[2, 3])
suscb.set_label("Magnetic susceptibility\nmodel (SI)", fontsize=16)
ax[2, 3].set_aspect(10)

# overlay true geology model for comparison
indslicexplot = mesh.gridCC[:, 0] == mesh.cell_centers_x[indx]
indsliceyplot = mesh.gridCC[:, 1] == mesh.cell_centers_y[indy]
indslicezplot = mesh.gridCC[:, 2] == mesh.cell_centers_z[indz]
for i in range(3):
    for j, (plane, indd) in enumerate(
        zip([[1, 2], [0, 2], [0, 1]], [indslicexplot, indsliceyplot, indslicezplot])
    ):
        utils.plot2Ddata(
            mesh.gridCC[indd][:, plane],
            true_geology[indd],
            nx=100,
            ny=100,
            contourOpts={"alpha": 0},
            clim=[0, 2],
            ax=ax[i, j],
            level=True,
            ncontour=2,
            levelOpts={"colors": "grey", "linewidths": 2, "linestyles": "--"},
            method="nearest",
        )

# plot the locations of the cross-sections
for i in range(3):
    ax[i, 0].plot(
        mesh.cell_centers_y[indy] * np.ones(2), [-300, 500], c="k", linestyle="dotted"
    )
    ax[i, 0].plot(
        [
            data_mag.survey.receiver_locations[:, 1].min(),
            data_mag.survey.receiver_locations[:, 1].max(),
        ],
        mesh.cell_centers_z[indz] * np.ones(2),
        c="k",
        linestyle="dotted",
    )
    ax[i, 0].set_xlim(
        [
            data_mag.survey.receiver_locations[:, 1].min(),
            data_mag.survey.receiver_locations[:, 1].max(),
        ],
    )

    ax[i, 1].plot(
        mesh.cell_centers_x[indx] * np.ones(2), [-300, 500], c="k", linestyle="dotted"
    )
    ax[i, 1].plot(
        [
            data_mag.survey.receiver_locations[:, 0].min(),
            data_mag.survey.receiver_locations[:, 0].max(),
        ],
        mesh.cell_centers_z[indz] * np.ones(2),
        c="k",
        linestyle="dotted",
    )
    ax[i, 1].set_xlim(
        [
            data_mag.survey.receiver_locations[:, 0].min(),
            data_mag.survey.receiver_locations[:, 0].max(),
        ],
    )

    ax[i, 2].plot(
        mesh.cell_centers_x[indx] * np.ones(2),
        [
            data_mag.survey.receiver_locations[:, 1].min(),
            data_mag.survey.receiver_locations[:, 1].max(),
        ],
        c="k",
        linestyle="dotted",
    )
    ax[i, 2].plot(
        [
            data_mag.survey.receiver_locations[:, 0].min(),
            data_mag.survey.receiver_locations[:, 0].max(),
        ],
        mesh.cell_centers_y[indy] * np.ones(2),
        c="k",
        linestyle="dotted",
    )
    ax[i, 2].set_xlim(
        [
            data_mag.survey.receiver_locations[:, 0].min(),
            data_mag.survey.receiver_locations[:, 0].max(),
        ],
    )
    ax[i, 2].set_ylim(
        [
            data_mag.survey.receiver_locations[:, 1].min(),
            data_mag.survey.receiver_locations[:, 1].max(),
        ],
    )

plt.tight_layout()
plt.show()

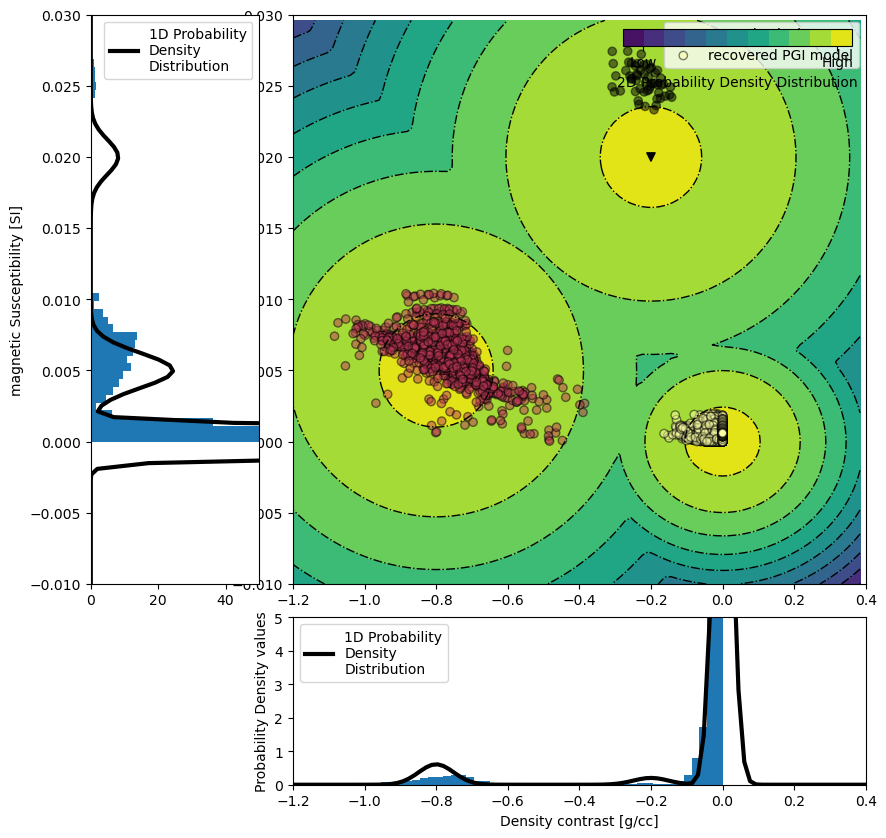

# Plot the 2D GMM
fig = plt.figure(figsize=(10, 10))
ax0 = plt.subplot2grid((4, 4), (3, 1), colspan=3)
ax1 = plt.subplot2grid((4, 4), (0, 1), colspan=3, rowspan=3)
ax2 = plt.subplot2grid((4, 4), (0, 0), rowspan=3)
ax = [ax0, ax1, ax2]
reg.objfcts[0].gmm.plot_pdf(flag2d=True, ax=ax, padding=0.5)
ax[0].set_xlabel("Density contrast [g/cc]")
ax[0].set_ylim([0, 5])
ax[2].set_xlim([0, 50])
ax[2].set_ylabel("magnetic Susceptibility [SI]")
ax[1].scatter(
    density_model[actv],
    magsus_model[actv],
    c=quasi_geology_model[actv],
    cmap="inferno_r",
    edgecolors="k",
    label="recovered PGI model",
    alpha=0.5,
)
ax[1].legend()
ax[0].hist(density_model[actv], density=True, bins=50)
ax[2].hist(magsus_model[actv], density=True, bins=50, orientation="horizontal")
plt.show()
