Cross-gradient Joint Inversion of Gravity and Magnetic Anomaly Data

%matplotlib inline

import os
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
import tarfile

from discretize import TensorMesh
from discretize.utils import active_from_xyz
from simpeg.utils import plot2Ddata
from simpeg.potential_fields import gravity, magnetics
from simpeg import (
    maps,
    data,
    data_misfit,
    inverse_problem,
    regularization,
    optimization,
    directives,
    inversion,
    utils,
)

# # storage bucket where we have the data
data_source = (
    "https://storage.googleapis.com/simpeg/doc-assets/cross_gradient_data.tar.gz"
)

# # download the data
downloaded_data = utils.download(data_source, overwrite=True)

# unzip the tarfile
tar = tarfile.open(downloaded_data, "r")
tar.extractall()
tar.close()

# path to the directory containing our data
dir_path = downloaded_data.split(".")[0] + os.path.sep

# files to work with
topo_filename = dir_path + "topo.txt"
model_filename = dir_path + "true_model.txt"

# Load topography
xyz_topo = np.loadtxt(topo_filename)

# Load field data
dobs_grav = np.loadtxt(dir_path + "gravity_data.obs")
dobs_mag = np.loadtxt(dir_path + "magnetic_data.obs")

# Define receiver locations and observed data
receiver_locations = dobs_grav[:, 0:3]

dobs_grav = dobs_grav[:, -1]
dobs_mag = dobs_mag[:, -1]

# Plot
mpl.rcParams.update({"font.size": 12})

# gravity data
fig = plt.figure(figsize=(7, 5))

ax1 = fig.add_axes([0.1, 0.1, 0.73, 0.85])
plot2Ddata(receiver_locations, dobs_grav, ax=ax1, contourOpts={"cmap": "bwr"})

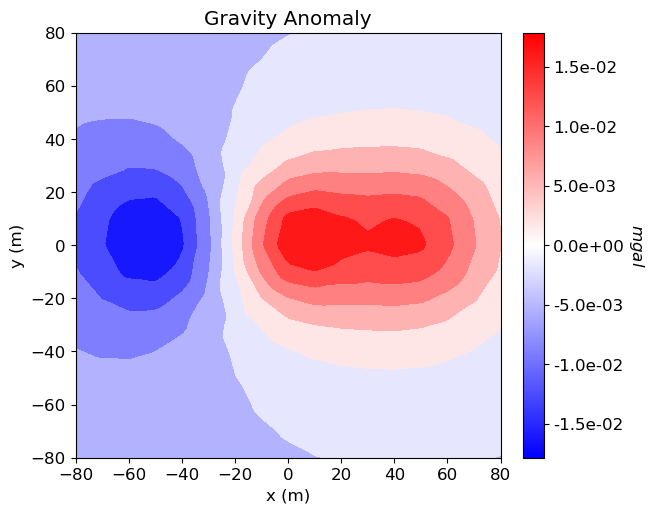

ax1.set_title("Gravity Anomaly")
ax1.set_xlabel("x (m)")
ax1.set_ylabel("y (m)")

ax2 = fig.add_axes([0.8, 0.1, 0.03, 0.85])
norm = mpl.colors.Normalize(
    vmin=-np.max(np.abs(dobs_grav)), vmax=np.max(np.abs(dobs_grav))
)
cbar = mpl.colorbar.ColorbarBase(
    ax2, norm=norm, orientation="vertical", cmap=mpl.cm.bwr, format="%.1e"
)
cbar.set_label("$mgal$", rotation=270, labelpad=15, size=12)

# magnetic data
fig = plt.figure(figsize=(7, 5))
ax1 = fig.add_axes([0.1, 0.1, 0.73, 0.85])
plot2Ddata(receiver_locations, dobs_mag, ax=ax1, contourOpts={"cmap": "bwr"})

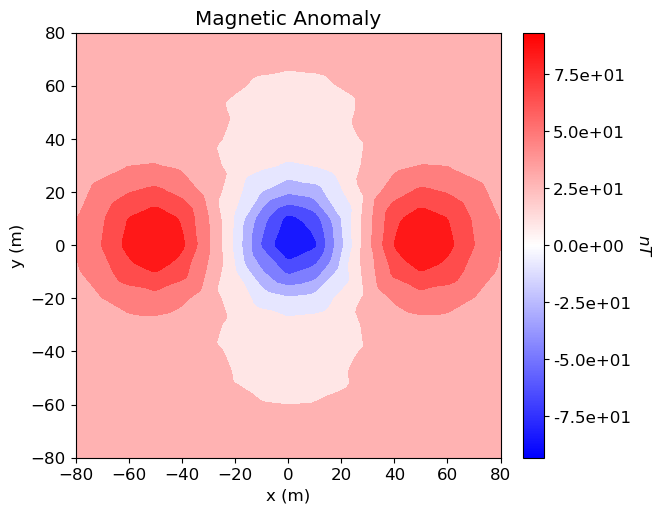

ax1.set_title("Magnetic Anomaly")
ax1.set_xlabel("x (m)")
ax1.set_ylabel("y (m)")

ax2 = fig.add_axes([0.8, 0.1, 0.03, 0.85])
norm = mpl.colors.Normalize(
    vmin=-np.max(np.abs(dobs_mag)), vmax=np.max(np.abs(dobs_mag))
)
cbar = mpl.colorbar.ColorbarBase(
    ax2, norm=norm, orientation="vertical", cmap=mpl.cm.bwr, format="%.1e"
)
cbar.set_label("$nT$", rotation=270, labelpad=15, size=12)

plt.show()

maximum_anomaly_grav = np.max(np.abs(dobs_grav))
uncertainties_grav = 0.01 * maximum_anomaly_grav * np.ones(np.shape(dobs_grav))

maximum_anomaly_mag = np.max(np.abs(dobs_mag))
uncertainties_mag = 0.01 * maximum_anomaly_mag * np.ones(np.shape(dobs_mag))

# Define the receivers. The data consist of vertical gravity anomaly measurements.
# The set of receivers must be defined as a list.
receiver_grav = gravity.receivers.Point(receiver_locations, components="gz")

# Define the source field and survey for gravity data
source_field_grav = gravity.sources.SourceField(receiver_list=[receiver_grav])
survey_grav = gravity.survey.Survey(source_field_grav)


# Define the component(s) of the field we want to simulate as a list of strings.
# Here we simulation total magnetic intensity data.
components = ["tmi"]

# Use the observation locations and components to define the receivers. To
# simulate data, the receivers must be defined as a list.
receiver_mag = magnetics.receivers.Point(receiver_locations, components=components)

# Define the inducing field H0 = (intensity [nT], inclination [deg], declination [deg])
inclination = 90
declination = 0
strength = 50000

# Define the source field and survey for gravity data
source_field_mag = magnetics.sources.UniformBackgroundField(
    receiver_list=[receiver_mag],
    amplitude=strength,
    declination=declination,
    inclination=inclination,
)
survey_mag = magnetics.survey.Survey(source_field_mag)

data_object_grav = data.Data(
    survey_grav, dobs=dobs_grav, standard_deviation=uncertainties_grav
)
data_object_mag = data.Data(
    survey_mag, dobs=dobs_mag, standard_deviation=uncertainties_mag
)

dh = 5.0
hx = [(dh, 5, -1.3), (dh, 40), (dh, 5, 1.3)]
hy = [(dh, 5, -1.3), (dh, 40), (dh, 5, 1.3)]
hz = [(dh, 5, -1.3), (dh, 15)]
mesh = TensorMesh([hx, hy, hz], "CCN")

# Define density contrast values for each unit in g/cc.
background_dens, background_susc = 1e-6, 1e-6

# Find the indicies of the active cells in forward model (ones below surface)
ind_active = active_from_xyz(mesh, xyz_topo)

# Define mapping from model to active cells
nC = int(ind_active.sum())
model_map = maps.IdentityMap(nP=nC)  # model consists of a value for each active cell

# Create Wires Map that maps from stacked models to individual model components
# m1 refers to density model, m2 refers to susceptibility
wires = maps.Wires(("density", nC), ("susceptibility", nC))

# Define and plot starting model
starting_model = np.r_[background_dens * np.ones(nC), background_susc * np.ones(nC)]

simulation_grav = gravity.simulation.Simulation3DIntegral(
    survey=survey_grav,
    mesh=mesh,
    rhoMap=wires.density,
    active_cells=ind_active,
    engine="choclo",
)

simulation_mag = magnetics.simulation.Simulation3DIntegral(
    survey=survey_mag,
    mesh=mesh,
    model_type="scalar",
    chiMap=wires.susceptibility,
    active_cells=ind_active,
    engine="choclo",
)

# Define the data misfit. Here the data misfit is the L2 norm of the weighted
# residual between the observed data and the data predicted for a given model.
# Within the data misfit, the residual between predicted and observed data are
# normalized by the data's standard deviation.
dmis_grav = data_misfit.L2DataMisfit(data=data_object_grav, simulation=simulation_grav)
dmis_mag = data_misfit.L2DataMisfit(data=data_object_mag, simulation=simulation_mag)

# Define the regularization (model objective function).
reg_grav = regularization.WeightedLeastSquares(
    mesh, active_cells=ind_active, mapping=wires.density
)
reg_mag = regularization.WeightedLeastSquares(
    mesh, active_cells=ind_active, mapping=wires.susceptibility
)

# Define the coupling term to connect two different physical property models
lamda = 2e12  # weight for coupling term
cross_grad = regularization.CrossGradient(mesh, wires, active_cells=ind_active)

# combo
dmis = dmis_grav + dmis_mag
reg = reg_grav + reg_mag + lamda * cross_grad

# Define how the optimization problem is solved. Here we will use a projected
# Gauss-Newton approach that employs the conjugate gradient solver.
opt = optimization.ProjectedGNCG(
    maxIter=10,
    lower=-2.0,
    upper=2.0,
    maxIterLS=20,
    maxIterCG=100,
    tolCG=1e-3,
    tolX=1e-3,
)

# Here we define the inverse problem that is to be solved
inv_prob = inverse_problem.BaseInvProblem(dmis, reg, opt)

# Defining a starting value for the trade-off parameter (beta) between the data
# misfit and the regularization.
starting_beta = directives.PairedBetaEstimate_ByEig(beta0_ratio=1e0)
# starting_beta.n_pw_iter = 10

# Defining the fractional decrease in beta and the number of Gauss-Newton solves
# for each beta value.
beta_schedule = directives.PairedBetaSchedule(cooling_factor=5, cooling_rate=1)

# Options for outputting recovered models and predicted data for each beta.
save_iteration = directives.SimilarityMeasureSaveOutputEveryIteration(save_txt=False)

joint_inv_dir = directives.SimilarityMeasureInversionDirective()

stopping = directives.MovingAndMultiTargetStopping(tol=1e-6)

sensitivity_weights = directives.UpdateSensitivityWeights(every_iteration=False)

# Updating the preconditionner if it is model dependent.
update_jacobi = directives.UpdatePreconditioner()


# The directives are defined as a list.
directives_list = [
    joint_inv_dir,
    sensitivity_weights,
    stopping,
    starting_beta,
    beta_schedule,
    save_iteration,
    update_jacobi,
]

# Here we combine the inverse problem and the set of directives
inv = inversion.BaseInversion(inv_prob, directives_list)

# Run inversion
recovered_model = inv.run(starting_model)

# Load the true model (was defined on the whole mesh) and extract only the
# values on active cells.

true_model_dens = np.loadtxt(dir_path + "true_model_dens.txt")
true_model_dens[~ind_active] = np.nan

true_model_susc = np.loadtxt(dir_path + "true_model_susc.txt")
true_model_susc[~ind_active] = np.nan

# Plot True Model
fig = plt.figure(figsize=(9, 8))
ax1 = plt.subplot(211)

(im,) = mesh.plot_slice(true_model_dens, normal="Y", ax=ax1, grid=True)

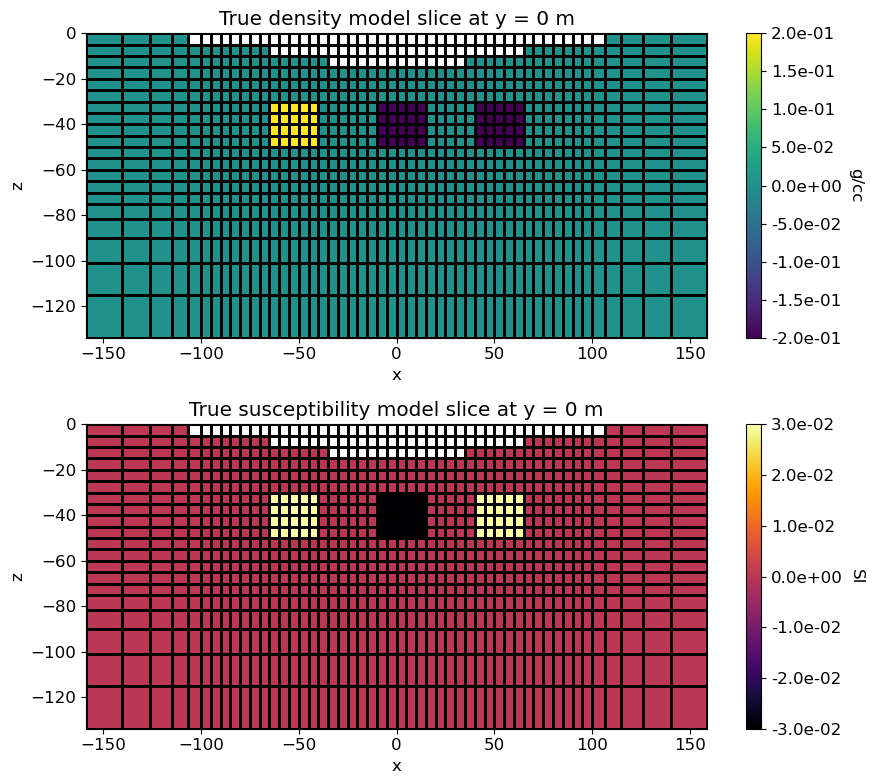

ax1.set_title("True density model slice at y = 0 m")
cbar = plt.colorbar(im, format="%.1e")
cbar.set_label("g/cc", rotation=270, labelpad=15, size=12)

ax2 = plt.subplot(212)
(im,) = mesh.plot_slice(
    true_model_susc, normal="Y", ax=ax2, grid=True, pcolor_opts={"cmap": "inferno"}
)

ax2.set_title("True susceptibility model slice at y = 0 m")
cbar = plt.colorbar(im, format="%.1e")
cbar.set_label("SI", rotation=270, labelpad=15, size=12)
plt.tight_layout()
plt.show()

# Plot Recovered Model
m_dens_joint, m_susc_joint = wires * recovered_model
plotting_map = maps.InjectActiveCells(mesh, ind_active, np.nan)

fig = plt.figure(figsize=(9, 8))
ax1 = plt.subplot(211)
(im,) = mesh.plot_slice(
    plotting_map * m_dens_joint,
    normal="Y",
    ax=ax1,
    clim=(-0.04, 0.03),
)

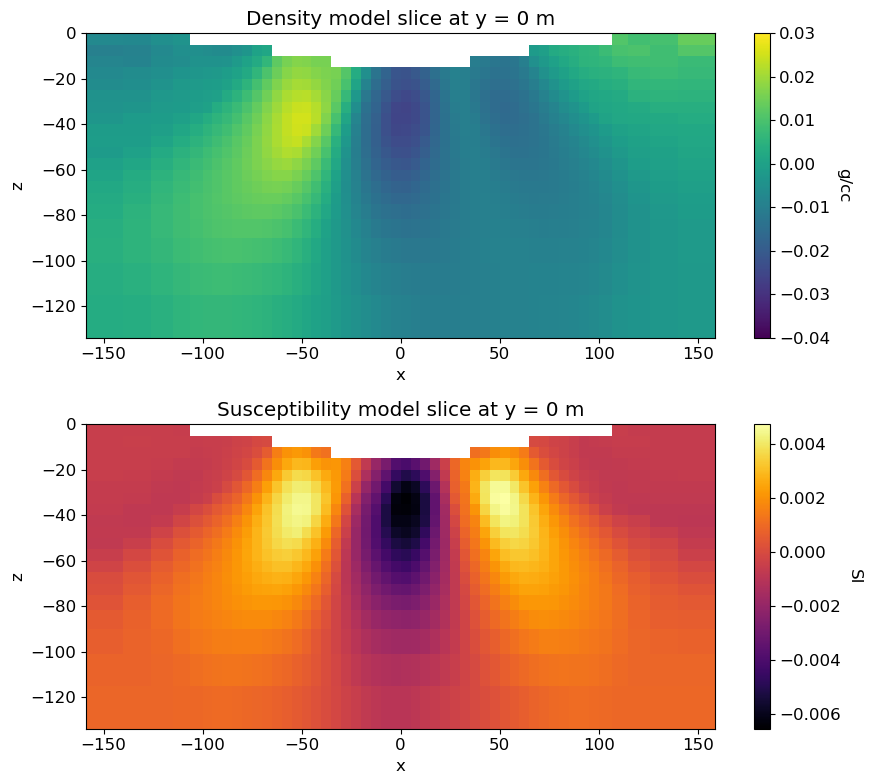

ax1.set_title("Density model slice at y = 0 m")
cbar = plt.colorbar(im)
cbar.set_label("g/cc", rotation=270, labelpad=15, size=12)

ax2 = plt.subplot(212)
(im,) = mesh.plot_slice(
    plotting_map * m_susc_joint, normal="Y", ax=ax2, pcolor_opts={"cmap": "inferno"}
)

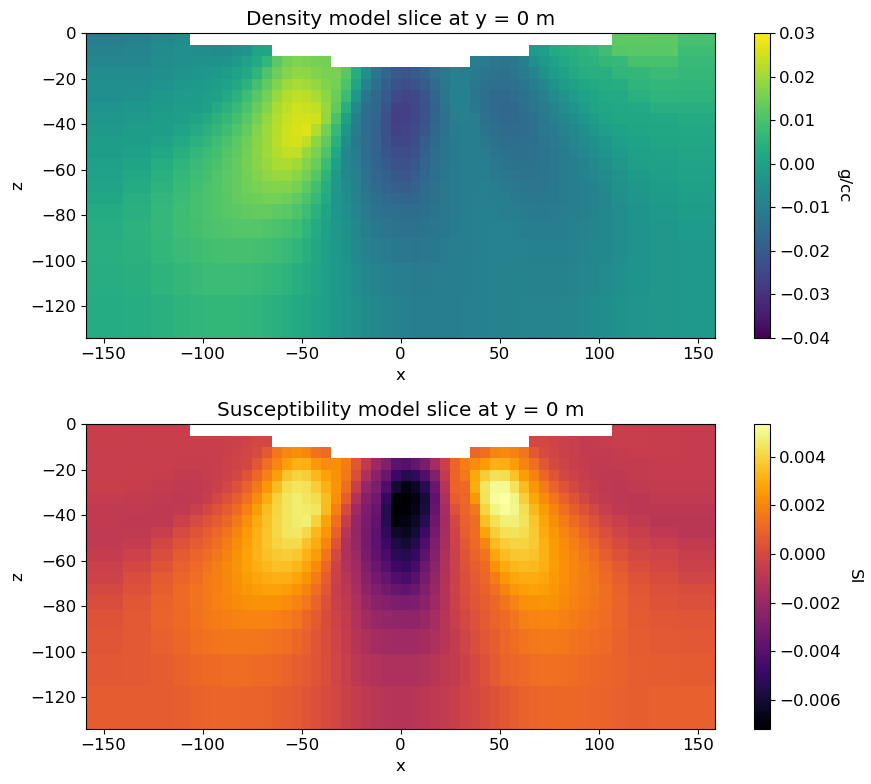

ax2.set_title("Susceptibility model slice at y = 0 m")
cbar = plt.colorbar(im)
cbar.set_label("SI", rotation=270, labelpad=15, size=12)

plt.tight_layout()
plt.show()

# Normalized Cross Gradient of Jointly Recovered Susceptibility and Density Models
ncg = cross_grad.calculate_cross_gradient(recovered_model, normalized=True)

fig = plt.figure(figsize=(9, 4))
ax = plt.subplot(111)
(im,) = mesh.plot_slice(
    plotting_map * ncg,
    normal="Y",
    ax=ax,
    grid=True,
)

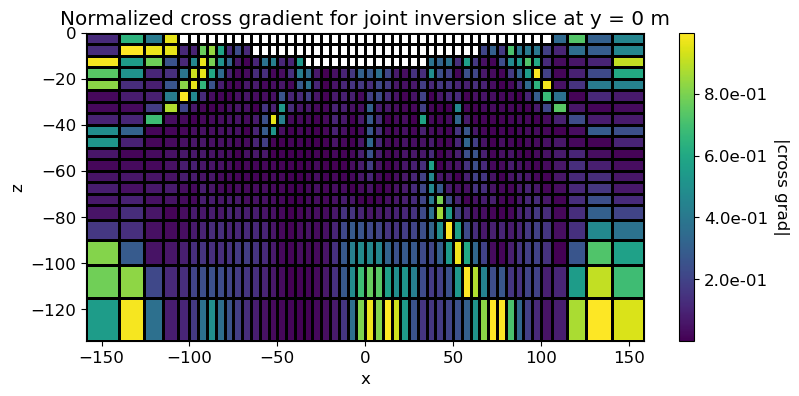

ax.set_title("Normalized cross gradient for joint inversion slice at y = 0 m")
cbar = plt.colorbar(im, format="%.1e")
cbar.set_label("|cross grad|", rotation=270, labelpad=15, size=12)
plt.show()

# Normalized Cross Gradient of Separately Recovered Susceptibility and Density Models
m_dens_single = np.loadtxt(dir_path + "single_model_dens.txt")
m_susc_single = np.loadtxt(dir_path + "single_model_susc.txt")
m_separate = np.r_[m_dens_single[ind_active], m_susc_single[ind_active]]

ncg_single = cross_grad.calculate_cross_gradient(m_separate, normalized=True)

fig = plt.figure(figsize=(9, 4))
ax = plt.subplot(111)
(im,) = mesh.plot_slice(
    plotting_map * ncg_single,
    normal="Y",
    ax=ax,
    grid=True,
)

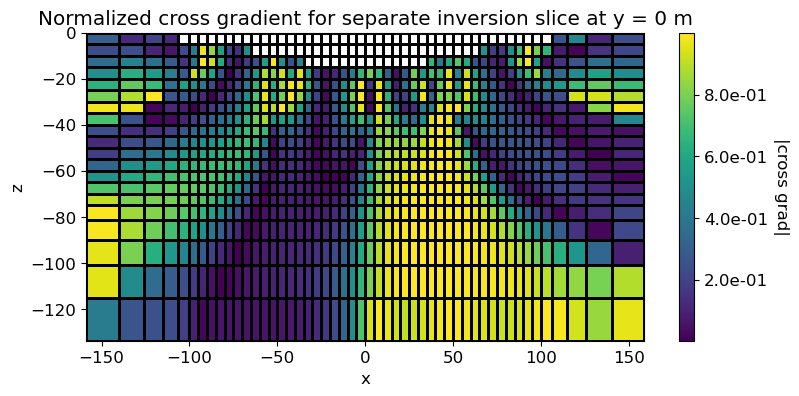

ax.set_title("Normalized cross gradient for separate inversion slice at y = 0 m")
cbar = plt.colorbar(im, format="%.1e")
cbar.set_label("|cross grad|", rotation=270, labelpad=15, size=12)

plt.show()


# Cross Plots Recovered Susceptibility and Density Models
fig = plt.figure(figsize=(14, 5))
ax0 = plt.subplot(121)
ax0.scatter(
    plotting_map * m_dens_joint, plotting_map * m_susc_joint, s=4, c="black", alpha=0.1
)

ax0.set_xlabel("Density", size=12)
ax0.set_ylabel("Susceptibility", size=12)
ax0.tick_params(labelsize=12)

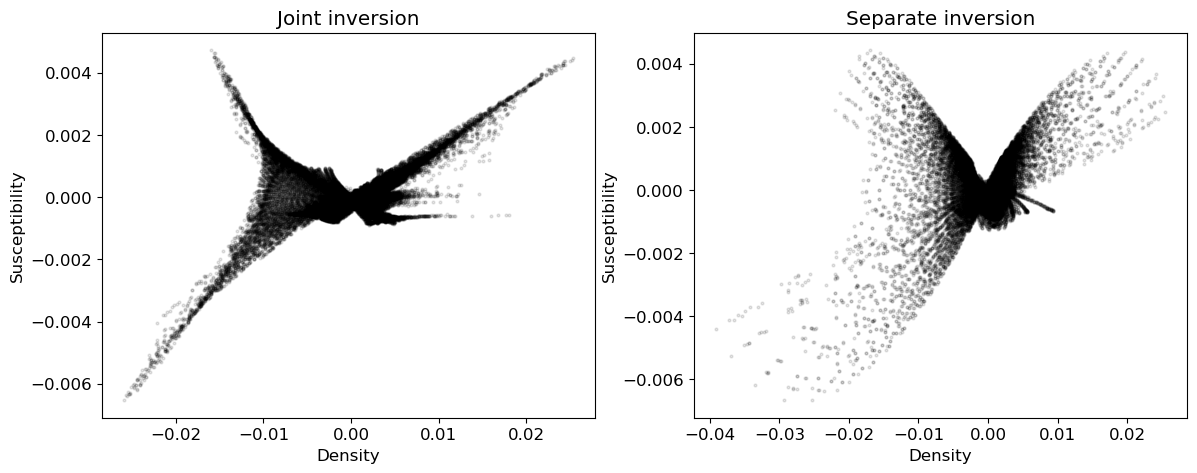

ax0.set_title("Joint inversion")

ax1 = plt.subplot(122)
ax1.scatter(m_dens_single, m_susc_single, s=4, c="black", alpha=0.1)

ax1.set_xlabel("Density", size=12)
ax1.set_ylabel("Susceptibility", size=12)
ax1.tick_params(labelsize=12)
ax1.set_title("Separate inversion")

plt.show()
