Compare weighting strategy with Inversion of surface Gravity Anomaly Data

import os
import tarfile

import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
from discretize import TensorMesh
from discretize.utils import active_from_xyz

from simpeg import (
    data,
    data_misfit,
    directives,
    inverse_problem,
    inversion,
    maps,
    optimization,
    regularization,
    utils,
)
from simpeg.potential_fields import gravity
from simpeg.utils import model_builder, plot2Ddata

# storage bucket where we have the data
data_source = "https://storage.googleapis.com/simpeg/doc-assets/gravity.tar.gz"

# download the data
downloaded_data = utils.download(data_source, overwrite=True)

# unzip the tarfile
tar = tarfile.open(downloaded_data, "r")
tar.extractall()
tar.close()

# path to the directory containing our data
dir_path = downloaded_data.split(".")[0] + os.path.sep

# files to work with
topo_filename = dir_path + "gravity_topo.txt"
data_filename = dir_path + "gravity_data.obs"

# Load topography
xyz_topo = np.loadtxt(str(topo_filename))

# Load field data
dobs = np.loadtxt(str(data_filename))

# Define receiver locations and observed data
receiver_locations = dobs[:, 0:3]
dobs = dobs[:, -1]

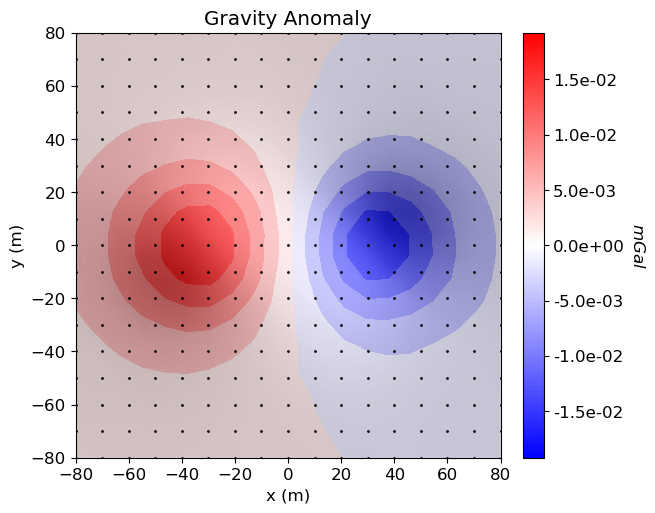

# Plot
mpl.rcParams.update({"font.size": 12})
fig = plt.figure(figsize=(7, 5))

ax1 = fig.add_axes([0.1, 0.1, 0.73, 0.85])
plot2Ddata(
    receiver_locations,
    dobs,
    ax=ax1,
    contourOpts={"cmap": "bwr"},
    shade=True,
    nx=20,
    ny=20,
    dataloc=True,
)
ax1.set_title("Gravity Anomaly")
ax1.set_xlabel("x (m)")
ax1.set_ylabel("y (m)")

ax2 = fig.add_axes([0.8, 0.1, 0.03, 0.85])
norm = mpl.colors.Normalize(vmin=-np.max(np.abs(dobs)), vmax=np.max(np.abs(dobs)))
cbar = mpl.colorbar.ColorbarBase(
    ax2, norm=norm, orientation="vertical", cmap=mpl.cm.bwr, format="%.1e"
)
cbar.set_label("$mGal$", rotation=270, labelpad=15, size=12)

plt.show()

maximum_anomaly = np.max(np.abs(dobs))

uncertainties = 0.01 * maximum_anomaly * np.ones(np.shape(dobs))

# Define the receivers. The data consists of vertical gravity anomaly measurements.
# The set of receivers must be defined as a list.
receiver_list = gravity.receivers.Point(receiver_locations, components="gz")

receiver_list = [receiver_list]

# Define the source field
source_field = gravity.sources.SourceField(receiver_list=receiver_list)

# Define the survey
survey = gravity.survey.Survey(source_field)

data_object = data.Data(survey, dobs=dobs, standard_deviation=uncertainties)

dh = 5.0
hx = [(dh, 5, -1.3), (dh, 40), (dh, 5, 1.3)]
hy = [(dh, 5, -1.3), (dh, 40), (dh, 5, 1.3)]
hz = [(dh, 5, -1.3), (dh, 15)]
mesh = TensorMesh([hx, hy, hz], "CCN")

# Find the indices of the active cells in forward model (ones below surface)
ind_active = active_from_xyz(mesh, xyz_topo)

# Define mapping from model to active cells
nC = int(ind_active.sum())
model_map = maps.IdentityMap(nP=nC)  # model consists of a value for each active cell

# Define and plot starting model
starting_model = np.zeros(nC)

simulation = gravity.simulation.Simulation3DIntegral(
    survey=survey, mesh=mesh, rhoMap=model_map, active_cells=ind_active
)

# Define the data misfit. Here the data misfit is the L2 norm of the weighted
# residual between the observed data and the data predicted for a given model.
# Within the data misfit, the residual between predicted and observed data are
# normalized by the data's standard deviation.
dmis = data_misfit.L2DataMisfit(data=data_object, simulation=simulation)

# inversion directives
# Defining a starting value for the trade-off parameter (beta) between the data
# misfit and the regularization.
starting_beta = directives.BetaEstimate_ByEig(beta0_ratio=1e0)

# Defines the directives for the IRLS regularization. This includes setting
# the cooling schedule for the trade-off parameter.
update_IRLS = directives.UpdateIRLS(
    f_min_change=1e-4,
    max_irls_iterations=30,
    irls_cooling_factor=1.5,
    misfit_tolerance=1e-2,
)

# Options for outputting recovered models and predicted data for each beta.
save_iteration = directives.SaveOutputEveryIteration(save_txt=False)

# Updating the preconditionner if it is model dependent.
update_jacobi = directives.UpdatePreconditioner()

# The directives are defined as a list
directives_list = [
    update_IRLS,
    starting_beta,
    save_iteration,
    update_jacobi,
]

# Define the regularization (model objective function) with depth weighting.
reg_dpth = regularization.Sparse(mesh, active_cells=ind_active, mapping=model_map)
reg_dpth.norms = [0, 2, 2, 2]
depth_weights = utils.depth_weighting(
    mesh, receiver_locations, active_cells=ind_active, exponent=2
)
reg_dpth.set_weights(depth_weights=depth_weights)

# Define how the optimization problem is solved. Here we will use a projected
# Gauss-Newton approach that employs the conjugate gradient solver.
opt = optimization.ProjectedGNCG(
    maxIter=100, lower=-1.0, upper=1.0, maxIterLS=20, maxIterCG=10, tolCG=1e-3
)

# Here we define the inverse problem that is to be solved
inv_prob = inverse_problem.BaseInvProblem(dmis, reg_dpth, opt)

# Here we combine the inverse problem and the set of directives
inv = inversion.BaseInversion(inv_prob, directives_list)

# Run inversion
recovered_model_dpth = inv.run(starting_model)

# inversion directives
# Defining a starting value for the trade-off parameter (beta) between the data
# misfit and the regularization.
starting_beta = directives.BetaEstimate_ByEig(beta0_ratio=1e0)

# Defines the directives for the IRLS regularization. This includes setting
# the cooling schedule for the trade-off parameter.
update_IRLS = directives.UpdateIRLS(
    f_min_change=1e-4,
    max_irls_iterations=30,
    irls_cooling_factor=1.5,
    misfit_tolerance=1e-2,
)

# Options for outputting recovered models and predicted data for each beta.
save_iteration = directives.SaveOutputEveryIteration(save_txt=False)

# Updating the preconditionner if it is model dependent.
update_jacobi = directives.UpdatePreconditioner()

# The directives are defined as a list
directives_list = [
    update_IRLS,
    starting_beta,
    save_iteration,
    update_jacobi,
]

# Define the regularization (model objective function) with distance weighting.
reg_dist = regularization.Sparse(mesh, active_cells=ind_active, mapping=model_map)
reg_dist.norms = [0, 2, 2, 2]
distance_weights = utils.distance_weighting(
    mesh, receiver_locations, active_cells=ind_active, exponent=2
)
reg_dist.set_weights(distance_weights=distance_weights)

# Define how the optimization problem is solved. Here we will use a projected
# Gauss-Newton approach that employs the conjugate gradient solver.
opt = optimization.ProjectedGNCG(
    maxIter=100, lower=-1.0, upper=1.0, maxIterLS=20, maxIterCG=10, tolCG=1e-3
)

# Here we define the inverse problem that is to be solved
inv_prob = inverse_problem.BaseInvProblem(dmis, reg_dist, opt)

# Here we combine the inverse problem and the set of directives
inv = inversion.BaseInversion(inv_prob, directives_list)

# Run inversion
recovered_model_dist = inv.run(starting_model)

# inversion directives
# Defining a starting value for the trade-off parameter (beta) between the data
# misfit and the regularization.
starting_beta = directives.BetaEstimate_ByEig(beta0_ratio=1e0)

# Defines the directives for the IRLS regularization. This includes setting
# the cooling schedule for the trade-off parameter.
update_IRLS = directives.UpdateIRLS(
    f_min_change=1e-4,
    max_irls_iterations=30,
    irls_cooling_factor=1.5,
    misfit_tolerance=1e-2,
)

# Options for outputting recovered models and predicted data for each beta.
save_iteration = directives.SaveOutputEveryIteration(save_txt=False)

# Updating the preconditionner if it is model dependent.
update_jacobi = directives.UpdatePreconditioner()

# Add sensitivity weights
sensitivity_weights = directives.UpdateSensitivityWeights(every_iteration=False)

# The directives are defined as a list
directives_list = [
    update_IRLS,
    sensitivity_weights,
    starting_beta,
    save_iteration,
    update_jacobi,
]

# Define the regularization (model objective function) for sensitivity weighting.
reg_sensw = regularization.Sparse(mesh, active_cells=ind_active, mapping=model_map)
reg_sensw.norms = [0, 2, 2, 2]

# Define how the optimization problem is solved. Here we will use a projected
# Gauss-Newton approach that employs the conjugate gradient solver.
opt = optimization.ProjectedGNCG(
    maxIter=100, lower=-1.0, upper=1.0, maxIterLS=20, maxIterCG=10, tolCG=1e-3
)

# Here we define the inverse problem that is to be solved
inv_prob = inverse_problem.BaseInvProblem(dmis, reg_sensw, opt)

# Here we combine the inverse problem and the set of directives
inv = inversion.BaseInversion(inv_prob, directives_list)

# Run inversion
recovered_model_sensw = inv.run(starting_model)

# Define density contrast values for each unit in g/cc
background_density = 0.0
block_density = -0.2
sphere_density = 0.2

# Define model. Models in simpeg are vector arrays.
true_model = background_density * np.ones(nC)

# You could find the indicies of specific cells within the model and change their
# value to add structures.
ind_block = (
    (mesh.gridCC[ind_active, 0] > -50.0)
    & (mesh.gridCC[ind_active, 0] < -20.0)
    & (mesh.gridCC[ind_active, 1] > -15.0)
    & (mesh.gridCC[ind_active, 1] < 15.0)
    & (mesh.gridCC[ind_active, 2] > -50.0)
    & (mesh.gridCC[ind_active, 2] < -30.0)
)
true_model[ind_block] = block_density

# You can also use simpeg utilities to add structures to the model more concisely
ind_sphere = model_builder.get_indices_sphere(
    np.r_[35.0, 0.0, -40.0], 15.0, mesh.gridCC
)
ind_sphere = ind_sphere[ind_active]
true_model[ind_sphere] = sphere_density

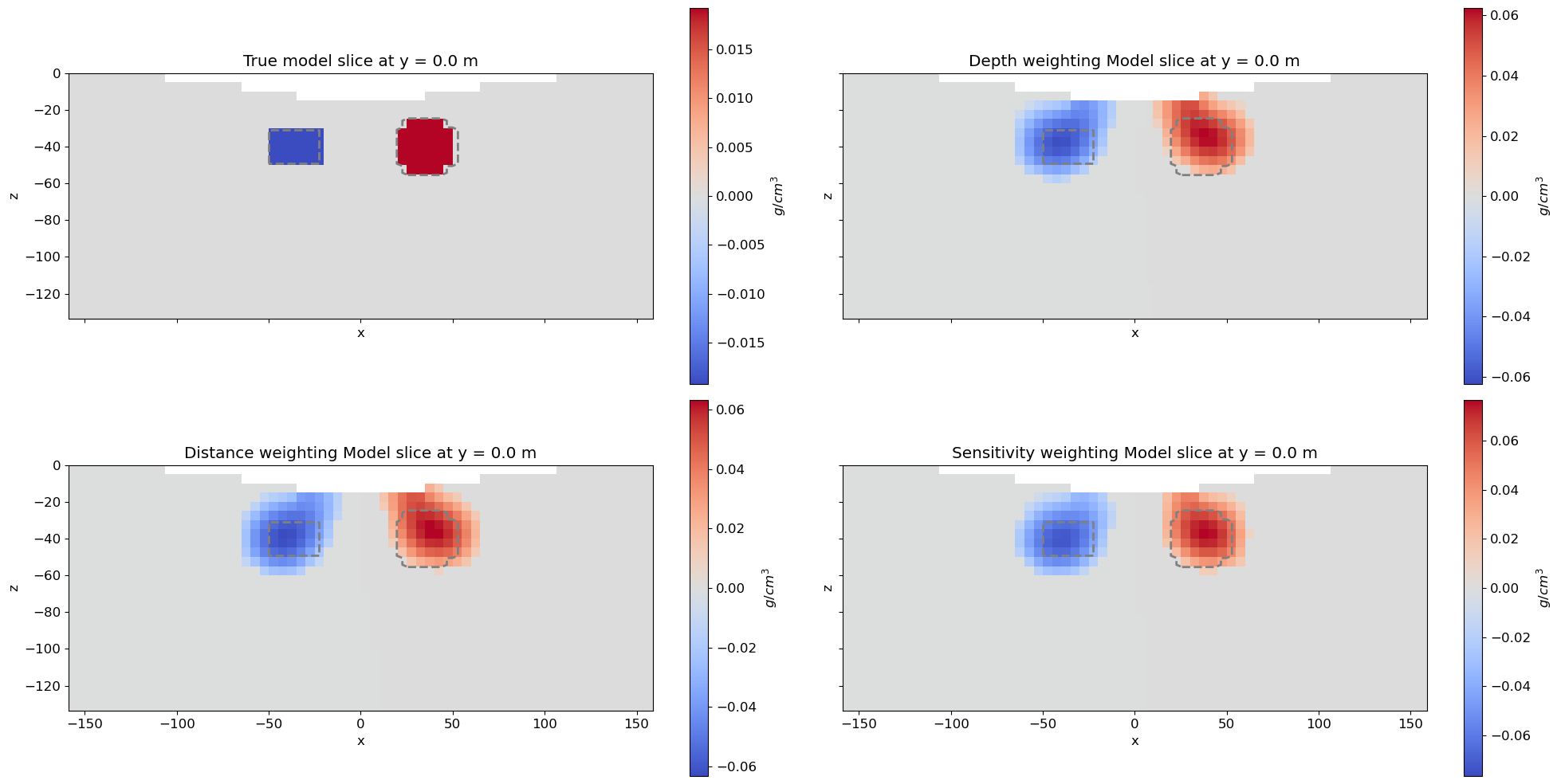

# Plot Models
fig, ax = plt.subplots(2, 2, figsize=(20, 10), sharex=True, sharey=True)
ax = ax.flatten()
plotting_map = maps.InjectActiveCells(mesh, ind_active, np.nan)
cmap = "coolwarm"
slice_y_loc = 0.0

mm = mesh.plot_slice(
    plotting_map * true_model,
    normal="Y",
    ax=ax[0],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap, "norm": norm},
)
ax[0].set_title(f"True model slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="$g/cm^3$", ax=ax[0])

# plot depth weighting result
vmax = np.abs(recovered_model_dpth).max()
norm = mpl.colors.TwoSlopeNorm(vcenter=0, vmin=-vmax, vmax=vmax)
mm = mesh.plot_slice(
    plotting_map * recovered_model_dpth,
    normal="Y",
    ax=ax[1],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap, "norm": norm},
)
ax[1].set_title(f"Depth weighting Model slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="$g/cm^3$", ax=ax[1])

# plot distance weighting result
vmax = np.abs(recovered_model_dist).max()
norm = mpl.colors.TwoSlopeNorm(vcenter=0, vmin=-vmax, vmax=vmax)
mm = mesh.plot_slice(
    plotting_map * recovered_model_dist,
    normal="Y",
    ax=ax[2],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap, "norm": norm},
)
ax[2].set_title(f"Distance weighting Model slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="$g/cm^3$", ax=ax[2])

# plot sensitivity weighting result
vmax = np.abs(recovered_model_sensw).max()
norm = mpl.colors.TwoSlopeNorm(vcenter=0, vmin=-vmax, vmax=vmax)
mm = mesh.plot_slice(
    plotting_map * recovered_model_sensw,
    normal="Y",
    ax=ax[3],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap, "norm": norm},
)
ax[3].set_title(f"Sensitivity weighting Model slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="$g/cm^3$", ax=ax[3])

# shared plotting
plotting_map = maps.InjectActiveCells(mesh, ind_active, 0.0)
slice_y_ind = (
    mesh.cell_centers[:, 1] == np.abs(mesh.cell_centers[:, 1] - slice_y_loc).min()
)
for axx in ax:
    utils.plot2Ddata(
        mesh.cell_centers[slice_y_ind][:, [0, 2]],
        (plotting_map * true_model)[slice_y_ind],
        contourOpts={"alpha": 0},
        level=True,
        ncontour=2,
        levelOpts={"colors": "grey", "linewidths": 2, "linestyles": "--"},
        method="nearest",
        ax=axx,
    )
    axx.set_aspect(1)

plt.tight_layout()

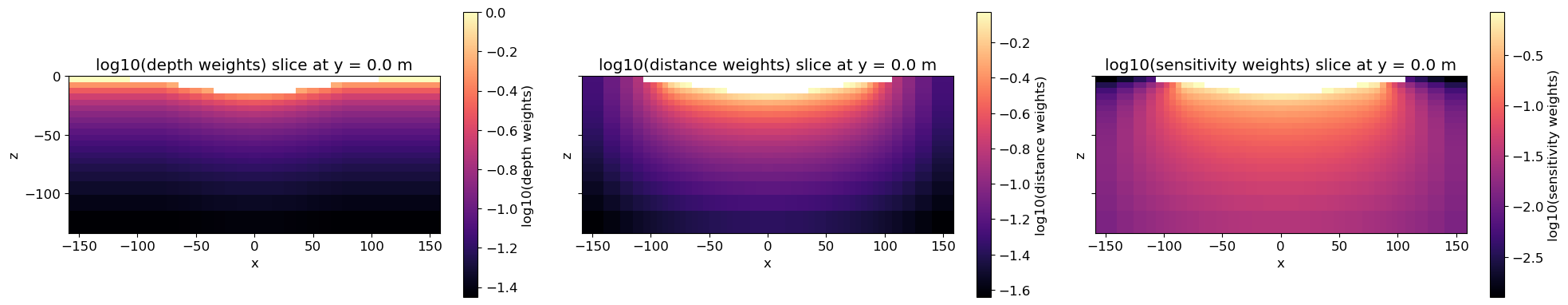

fig, ax = plt.subplots(1, 3, figsize=(20, 4), sharex=True, sharey=True)
plotting_map = maps.InjectActiveCells(mesh, ind_active, np.nan)
cmap = "magma"
slice_y_loc = 0.0

# plot depth weights
mm = mesh.plot_slice(
    plotting_map * np.log10(depth_weights),
    normal="Y",
    ax=ax[0],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap},
)
ax[0].set_title(f"log10(depth weights) slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="log10(depth weights)", ax=ax[0])

# plot distance weights
mm = mesh.plot_slice(
    plotting_map * np.log10(distance_weights),
    normal="Y",
    ax=ax[1],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap},
)
ax[1].set_title(f"log10(distance weights) slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="log10(distance weights)", ax=ax[1])

# plot sensitivity weights
mm = mesh.plot_slice(
    plotting_map * np.log10(reg_sensw.objfcts[0].get_weights(key="sensitivity")),
    normal="Y",
    ax=ax[2],
    grid=False,
    slice_loc=slice_y_loc,
    pcolor_opts={"cmap": cmap},
)
ax[2].set_title(f"log10(sensitivity weights) slice at y = {slice_y_loc} m")
plt.colorbar(mm[0], label="log10(sensitivity weights)", ax=ax[2])

# shared plotting
for axx in ax:
    axx.set_aspect(1)

plt.tight_layout()
