DC Simulation: Blocks Model

Geoscientific Problem

Pole-dipole DC resistivity data were simulated over both a conductive and a resistive block. The background conductivity was \(\sigma_0\) = 0.01 S/m. The conductor had a conductivity of \(\sigma_c\) = 0.1 S/m and the resistor had a conductivity of \(\sigma_r\) = 0.001 S/m. Both blocks were oriented along the Northing direction and had x, y and z dimensions of 400 m, 1600 m and 320 m. Both blocks were buried at a depth of 160 m.

DC voltage data were simulated with a pole-dipole configuration. The survey consisted of 9 West-East survey lines, each with a length of 2000 m. The line spacing was 250 m and the electrode spacing was 100 m.

A figure illustrating the density contrast model and survey geometry is shown further down

Codes/Formulations Being Compared

SimPEG 3D Nodal Formulation: This approach to solving the forward problem uses the SimPEG.electromagnetics.static.simulation.Simulation3DNodal simulation class.

UBC-GIF DCIP OcTree: DCIP OcTree is a voxel cell DC/IP forward modeling and inversion package developed by the UBC Geophysical Inversion Facility. This software is proprietary and can ONLY be acquired through appropriate commerical licenses. The numerical approach of the forward simulation is described in the online manual’s theory section. If you have a valid license, there are instructions for reproducing the results (add link).

Loading Assets Into the SimPEG Framework

We start by importing any necessary packages for running the notebook.

Show code cell source Hide code cell source

from SimPEG.electromagnetics.static import resistivity as dc
from SimPEG.electromagnetics.static.utils.static_utils import (
    plot_3d_pseudosection, apparent_resistivity
)
from SimPEG.utils.io_utils import read_dcipoctree_ubc, write_dcipoctree_ubc
from discretize import TreeMesh
import matplotlib as mpl
import matplotlib.pyplot as plt
import plotly
import numpy as np

mpl.rcParams.update({"font.size": 14})

Next we download the mesh, model and simulated data for each code/formulation.

Show code cell source Hide code cell source

# For each package, download .tar files

The mesh, model and predicted data for each code are then loaded into the SimPEG framework for plotting.

Show code cell source Hide code cell source

rootdir = './../../../assets/dcip/block_model_dc_fwd_simpeg_octree/'
mesh_simpeg = TreeMesh.readUBC(rootdir+'octree_mesh.txt')
model_simpeg = TreeMesh.readModelUBC(mesh_simpeg, rootdir+'true_model.con')
data_simpeg = read_dcipoctree_ubc(rootdir+'dpred_simpeg.txt', 'volt')

rootdir = './../../../assets/dcip/block_model_dc_fwd_dcipoctree/'
mesh_ubc = TreeMesh.readUBC(rootdir+'octree_mesh.txt')
model_ubc = TreeMesh.readModelUBC(mesh_simpeg, rootdir+'true_model.con')
data_ubc = read_dcipoctree_ubc(rootdir+'data_dc.txt', 'volt')

Plot Geophysical Scenario

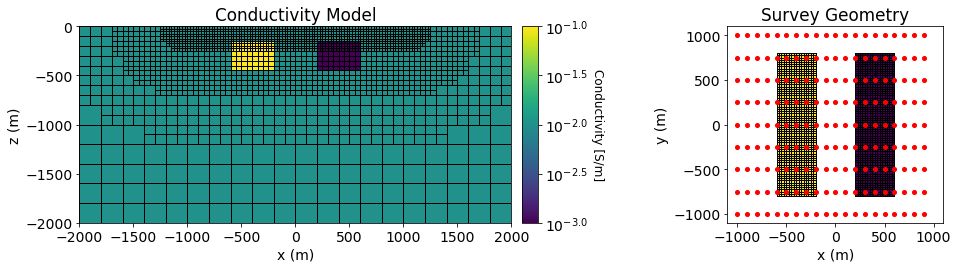

Below, we plot the conductivity model and survey geometry for the forward simulation.

Show code cell source Hide code cell source

vmin = np.log10(model_simpeg.min())
vmax = np.log10(model_simpeg.max())
ind = int(len(mesh_simpeg.hy)/2)

fig = plt.figure(figsize=(15, 3.5))

ax1 = fig.add_axes([0.1, 0.12, 0.4, 0.78])
mesh_simpeg.plot_slice(
    np.log10(model_simpeg), ax=ax1, normal='Y', grid=True,
    ind=ind, clim=(vmin, vmax), pcolorOpts={"cmap": "viridis"},
)
ax1.set_title("Conductivity Model")
ax1.set_xlim([-2000, 2000])
ax1.set_ylim([-2000, 0])
ax1.set_xlabel("x (m)")
ax1.set_ylabel("z (m)")

ax2 = fig.add_axes([0.51, 0.12, 0.015, 0.78])
norm = mpl.colors.Normalize(
    vmin=vmin, vmax=vmax
)
cbar = mpl.colorbar.ColorbarBase(
    ax2, norm=norm, cmap=mpl.cm.viridis, orientation="vertical", format="$10^{%.1f}$"
)
cbar.set_label("Conductivity [S/m]", rotation=270, labelpad=15, size=12)

ax3 = fig.add_axes([0.7, 0.12, 0.2, 0.78])
ind = int(len(mesh_simpeg.hz)-10)
masked_model = np.log10(model_simpeg)
masked_model[masked_model==-2]=np.NaN
mesh_simpeg.plot_slice(
    masked_model, ax=ax3, normal='Z', grid=True,
    ind=ind, clim=(vmin, vmax), pcolorOpts={"cmap": "viridis"},
)
for ii in range(0, 9):
    ax3.plot(np.arange(-1000, 1000, 100), -1000+ii*250*np.ones(20), 'ro', markersize=4)
ax3.set_xlim([-1100, 1100])
ax3.set_ylim([-1100, 1100])
ax3.set_xlabel('x (m)')
ax3.set_ylabel('y (m)')
ax3.set_title('Survey Geometry')

Text(0.5, 1.0, 'Survey Geometry')

Comparing Simulated Voltage Data

Here we plot the simulated data for all codes.

Show code cell source Hide code cell source

mpl.rcParams.update({'font.size': 16})

plane_points = []
for x in np.arange(-1000, 1100, 500):
    p1, p2, p3 = np.array([-1000.,x,0]), np.array([1000,x,0]), np.array([1000,x,-1000])
    plane_points.append([p1,p2,p3])

scene = dict(
    xaxis=dict(range=[-1000, 1000]),
    yaxis=dict(range=[-1000, 1000]),
    zaxis=dict(range=[-500, 0]),
    aspectratio=dict(x=1, y=1, z=0.5)
)
scene_camera=dict(
    center=dict(x=-0.1, y=0, z=-0.2), eye=dict(x=1.2, y=-1, z=1.5)
)
vlim = [data_ubc.dobs.min(), data_ubc.dobs.max()]
fig1 = plot_3d_pseudosection(
    data_ubc.survey, data_ubc.dobs, scale='log', vlim=vlim,
    plane_points=plane_points, plane_distance=10., units='V'
)

fig1.update_layout(
    title_text="Voltage Data (UBC)", title_x=0.5,
    scene_camera=scene_camera, scene=scene, width=600, height=550
)
plotly.io.show(fig1)

vlim = [data_simpeg.dobs.min(), data_simpeg.dobs.max()]
fig2 = plot_3d_pseudosection(
    data_simpeg.survey, data_simpeg.dobs, marker_size=150, scale='log', vlim=vlim,
    plane_points=plane_points, plane_distance=10., units='V'
)
fig2.update_layout(
    title_text="Voltage Data (SimPEG)", title_x=0.5,
    scene_camera=scene_camera, scene=scene, width=600, height=550
)
plotly.io.show(fig2)

Comparing Apparent Conductivities

To better illustrate the simulated data, we plot in terms of apparent conductivities.

Show code cell source Hide code cell source

mpl.rcParams.update({'font.size': 16})

plane_points = []
for x in np.arange(-1000, 1100, 500):
    p1, p2, p3 = np.array([-1000.,x,0]), np.array([1000,x,0]), np.array([1000,x,-1000])
    plane_points.append([p1,p2,p3])

scene_camera=dict(
    center=dict(x=-0.1, y=0, z=-0.2), eye=dict(x=1.2, y=-1, z=1.5)
)
scene = dict(
    xaxis=dict(range=[-1000, 1000]),
    yaxis=dict(range=[-1000, 1000]),
    zaxis=dict(range=[-500, 0]),
    aspectratio=dict(x=1, y=1, z=0.5)
)

app_cond_ubc = 1./apparent_resistivity(
    data_ubc, space_type="half space", dobs=data_ubc.dobs, eps=1e-10,
)
vlim = [app_cond_ubc.min(), app_cond_ubc.max()]
fig1 = plot_3d_pseudosection(
    data_ubc.survey, app_cond_ubc, scale='log', vlim=vlim,
    plane_points=plane_points, plane_distance=10., units='S/m'
)
fig1.update_layout(
    title_text="Apparent Conductivities (UBC)", title_x=0.5,
    width=600, height=550, scene_camera=scene_camera, scene=scene
)
plotly.io.show(fig1)

app_cond_simpeg = 1./apparent_resistivity(
    data_simpeg, space_type="half space", dobs=data_simpeg.dobs, eps=1e-10,
)
vlim = [app_cond_simpeg.min(), app_cond_simpeg.max()]
fig2 = plot_3d_pseudosection(
    data_simpeg.survey, app_cond_simpeg, scale='log', vlim=vlim,
    plane_points=plane_points, plane_distance=10., units='S/m'
)

fig2.update_layout(
    title_text="Apparent Conductivities (SimPEG)", title_x=0.5,
    width=600, height=550, scene_camera=scene_camera, scene=scene
)
plotly.io.show(fig2)

Percent Error Plot

Show code cell source Hide code cell source

err = 100*(data_simpeg.dobs - data_ubc.dobs)/data_simpeg.dobs

vlim = [err.min(), err.max()]
fig = plot_3d_pseudosection(
    data_simpeg.survey, err, scale='linear', vlim=vlim,
    plane_points=plane_points, plane_distance=10., units='%'
)
fig.update_layout(
    title_text="% Error", title_x=0.5, width=600, height=550, scene_camera=scene_camera, scene=scene
)
plotly.io.show(fig)

print('Min % error:', np.min(np.abs(err)))
print('Max % error:', np.max(np.abs(err)))
print('Average % error:', np.mean(np.abs(err)))
print('Median % error:', np.median(np.abs(err)))

Min % error: 0.005245189395426906
Max % error: 6.154689069491367
Average % error: 2.20696037763589
Median % error: 2.265438988175177
