Reproduce: SimPEG#
Geoscientific Problem#
Here, we inverted total magnetic intensity (TMI) data collected over a block within a homogeneous halfspace. We invert for a compact and blocky model using an iteratively re-weighted least-squares inversion approach. The problem is bounded to enforce positivity in the recovered susceptibility model.
The true model consists of a susceptible block (0.025 SI) within a minimally susceptible halfspace (0.0001 SI). The dimensions of the block in the x, y and z directions were are all 200 m. The block was buried at a depth of 200 m. The Earth’s inducing field had an inclination of 65 degrees, a declination of 25 degrees and an intensity of 50,000 nT.
The data being inverted were generated using the UBC MAG3D v6.0 code. Synthetic TMI data were simulated within a 1000 m by 1000 m region at an elevation of 30 m; the center of which lied directly over the center of the block. The station spacing was 50 m in both the X and Y directions. Observed data were sythnetically created by adding Gaussian noise with a standard deviation of 1 nT to the simulated data. A floor uncertainty of 1 nT was assigned to the observed data.
SimPEG Package Details#
Link to the docstrings for the simulation class The docstrings will have a citation and show the integral equation.
Running the Inversion#
We begin by importing all necessary Python packages for running the notebook.
Show code cell source
from SimPEG import dask
from SimPEG.potential_fields import magnetics
from SimPEG.utils import plot2Ddata
from SimPEG.utils.io_utils import read_mag3d_ubc, write_mag3d_ubc
from SimPEG import maps, data, data_misfit, regularization, optimization, inverse_problem, inversion, directives
from discretize import TensorMesh
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
mpl.rcParams.update({"font.size": 14})
write_output = True
A compressed folder containing the assets required to run the notebook is then downloaded. This includes the mesh, true model, and observed data files.
Show code cell source
# Download .tar file
Extracted files are then loaded into the SimPEG framework.
Show code cell source
rootdir = './../../../assets/magnetics/block_halfspace_tmi_inv_sparse_simpeg/'
meshfile = rootdir + 'mesh.txt'
truemodelfile = rootdir + 'true_model.sus'
obsfile = rootdir + 'dobs.mag'
sensitivitydir = './block_halfspace_tmi_inv_sparse_simpeg/'
mesh = TensorMesh.read_UBC(meshfile)
true_model = TensorMesh.read_model_UBC(mesh, truemodelfile)
mag_data = read_mag3d_ubc(obsfile)

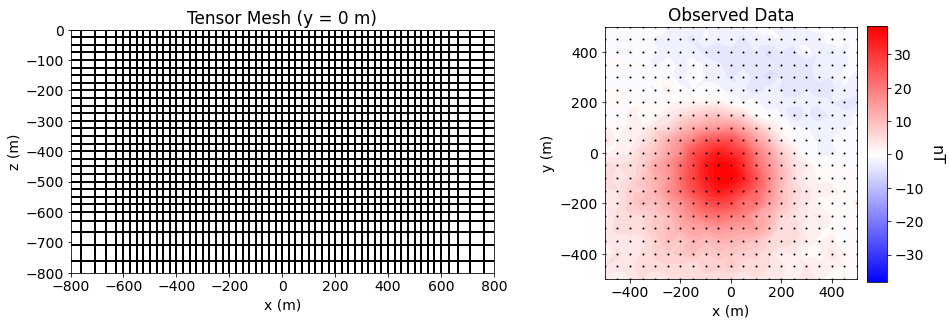

We then plot the observed data and the mesh on which we will recover a susceptibility model.
Show code cell source
fig = plt.figure(figsize=(14, 4.5))
ax11 = fig.add_axes([0.1, 0.15, 0.42, 0.75])
ind = int(mesh.shape_cells[1]/2)
nan_array = np.zeros(len(true_model))
nan_array[:] = np.NaN
mesh.plot_slice(nan_array, normal='Y', ind=ind, grid=True, ax=ax11)
ax11.set_xlim([-800, 800])
ax11.set_ylim([-800, 0])
ax11.set_title("Tensor Mesh (y = 0 m)")
ax11.set_xlabel("x (m)")
ax11.set_ylabel("z (m)")
ax21 = fig.add_axes([0.63, 0.12, 0.25, 0.8])
xyz = mag_data.survey.receiver_locations
max_val = np.max(np.abs(mag_data.dobs))
plot2Ddata(
xyz, mag_data.dobs, ax=ax21, dataloc=True, ncontour=50,
clim=(-max_val, max_val), contourOpts={"cmap": "bwr"}
)
ax21.set_title("Observed Data")
ax21.set_xlabel("x (m)")
ax21.set_ylabel("y (m)")
ax22 = fig.add_axes([0.89, 0.12, 0.02, 0.79])
norm = mpl.colors.Normalize(vmin=-max_val, vmax=max_val)
cbar = mpl.colorbar.ColorbarBase(
ax22, norm=norm, orientation="vertical", cmap=mpl.cm.bwr
)
cbar.set_label("nT", rotation=270, labelpad=20, size=16)
plt.show()
<__array_function__ internals>:5: UserWarning: Warning: converting a masked element to nan.
C:\Users\devin\anaconda3\lib\site-packages\numpy\core\_asarray.py:102: UserWarning: Warning: converting a masked element to nan.
return array(a, dtype, copy=False, order=order)
Next, we define the mapping from the model space to the mesh and the simulation. This problem is relatively small so the sensitivity matrix can be stored to disk.
chi_map = maps.IdentityMap(nP=mesh.nC)
simulation = magnetics.simulation.Simulation3DIntegral(
survey=mag_data.survey,
mesh=mesh,
chiMap=chi_map,
store_sensitivities="disk",
sensitivity_path=sensitivitydir
)
We now define a starting model and reference model for the inversion.
# Starting and reference model
mref = 1e-4*np.ones(mesh.nC)
m0 = 1e-4*np.ones(mesh.nC)
Here we define the measure of data misfit, the regularization and the algorithm used to compute the step-direction at each iteration. These are used to define the inverse problem.
Show code cell source
dmis = data_misfit.L2DataMisfit(data=mag_data, simulation=simulation)
reg_map = maps.IdentityMap(nP=mesh.nC)
reg = regularization.Sparse(
mesh, mapping=reg_map, reference_model=mref, gradient_type='components',
alpha_s=2.5e-4, alpha_x=1, alpha_y=1, alpha_z=1
)
reg.norms = np.r_[0., 1., 1., 1.]
opt = optimization.ProjectedGNCG(
maxIter=50, maxIterCG=50, lower=0.
)
inv_prob = inverse_problem.BaseInvProblem(dmis, reg, opt)
Here, we define the directives for the inversion
Show code cell source
starting_beta = directives.BetaEstimate_ByEig(beta0_ratio=1e2)
beta_schedule = directives.BetaSchedule(coolingFactor=2, coolingRate=1)
save_iteration = directives.SaveOutputEveryIteration(save_txt=False)
update_IRLS = directives.Update_IRLS(
max_irls_iterations=30, chifact_start=1.
)
update_jacobi = directives.UpdatePreconditioner()
sensitivity_weights = directives.UpdateSensitivityWeights(everyIter=True)
directives_list = [
sensitivity_weights,
starting_beta,
beta_schedule,
save_iteration,
update_IRLS,
update_jacobi,
]
Finally, we define and run the inversion.
inv = inversion.BaseInversion(inv_prob, directives_list)
simpeg_model = inv.run(m0)
simpeg_model = chi_map*simpeg_model
dpred = inv_prob.dpred
SimPEG.InvProblem is setting bfgsH0 to the inverse of the eval2Deriv.
***Done using the default solver Pardiso and no solver_opts.***
model has any nan: 0
=============================== Projected GNCG ===============================
# beta phi_d phi_m f |proj(x-g)-x| LS Comment
-----------------------------------------------------------------------------
x0 has any nan: 0
0 5.55e+06 2.04e+04 0.00e+00 2.04e+04 5.03e+05 0
1 1.39e+06 1.80e+03 5.20e-04 2.52e+03 1.18e+05 0
2 3.47e+05 3.31e+02 9.39e-04 6.57e+02 3.94e+04 0 Skip BFGS
Reached starting chifact with l2-norm regularization: Start IRLS steps...
irls_threshold 0.0029561915184348484
3 8.67e+04 1.31e+02 1.87e-03 2.93e+02 1.45e+04 0 Skip BFGS
4 1.10e+05 7.14e+01 2.80e-03 3.81e+02 6.89e+03 0 Skip BFGS
5 1.23e+05 8.91e+01 3.15e-03 4.78e+02 7.02e+03 0
6 1.31e+05 9.81e+01 3.54e-03 5.62e+02 3.23e+03 0
7 1.28e+05 1.15e+02 3.86e-03 6.10e+02 3.82e+03 0
8 1.22e+05 1.22e+02 4.18e-03 6.31e+02 5.03e+03 0
9 1.12e+05 1.32e+02 4.40e-03 6.24e+02 5.52e+03 0 Skip BFGS
10 1.01e+05 1.39e+02 4.53e-03 5.94e+02 3.94e+03 0 Skip BFGS
11 8.90e+04 1.43e+02 4.64e-03 5.56e+02 2.68e+03 0 Skip BFGS
12 7.82e+04 1.45e+02 4.74e-03 5.16e+02 2.12e+03 0 Skip BFGS
13 6.85e+04 1.47e+02 4.86e-03 4.79e+02 1.70e+03 0 Skip BFGS
14 5.98e+04 1.48e+02 4.98e-03 4.46e+02 1.38e+03 0 Skip BFGS
15 5.21e+04 1.48e+02 5.15e-03 4.17e+02 1.30e+03 0 Skip BFGS
16 4.53e+04 1.49e+02 5.33e-03 3.91e+02 1.18e+03 0 Skip BFGS
17 3.93e+04 1.50e+02 5.55e-03 3.68e+02 1.14e+03 0 Skip BFGS
18 3.41e+04 1.51e+02 5.81e-03 3.48e+02 1.09e+03 0 Skip BFGS
19 2.94e+04 1.51e+02 6.08e-03 3.30e+02 1.01e+03 0 Skip BFGS
20 2.54e+04 1.52e+02 6.38e-03 3.14e+02 9.89e+02 0 Skip BFGS
21 2.20e+04 1.52e+02 6.74e-03 3.00e+02 1.06e+03 0 Skip BFGS
22 1.89e+04 1.52e+02 7.10e-03 2.86e+02 1.12e+03 0 Skip BFGS
23 1.63e+04 1.52e+02 7.49e-03 2.74e+02 1.26e+03 0 Skip BFGS
24 1.41e+04 1.51e+02 7.88e-03 2.63e+02 1.48e+03 0 Skip BFGS
25 1.23e+04 1.50e+02 8.30e-03 2.52e+02 1.74e+03 0 Skip BFGS
26 1.07e+04 1.48e+02 8.73e-03 2.42e+02 2.01e+03 0 Skip BFGS
27 9.37e+03 1.46e+02 9.18e-03 2.32e+02 2.27e+03 0
28 8.28e+03 1.44e+02 9.67e-03 2.24e+02 2.46e+03 0
29 7.38e+03 1.41e+02 1.02e-02 2.16e+02 2.60e+03 0
30 6.66e+03 1.37e+02 1.07e-02 2.09e+02 2.71e+03 0
31 6.07e+03 1.34e+02 1.12e-02 2.02e+02 2.82e+03 0
32 5.61e+03 1.30e+02 1.17e-02 1.96e+02 2.91e+03 0
Reach maximum number of IRLS cycles: 30
------------------------- STOP! -------------------------
1 : |fc-fOld| = 0.0000e+00 <= tolF*(1+|f0|) = 2.0367e+03
1 : |xc-x_last| = 2.6866e-03 <= tolX*(1+|x0|) = 1.0397e-01
0 : |proj(x-g)-x| = 2.9058e+03 <= tolG = 1.0000e-01
0 : |proj(x-g)-x| = 2.9058e+03 <= 1e3*eps = 1.0000e-02
0 : maxIter = 50 <= iter = 33
------------------------- DONE! -------------------------
If desired, we can output the recovered model and the predicted data.
if write_output:
TensorMesh.write_model_UBC(mesh, rootdir+'recovered_model.sus', simpeg_model)
data_dpred = data.Data(survey=mag_data.survey, dobs=dpred)
write_mag3d_ubc(rootdir+'dpred.mag', data_dpred)
Observation file saved to: ./../../../assets/magnetics/block_halfspace_tmi_inv_sparse_simpeg/dpred.mag

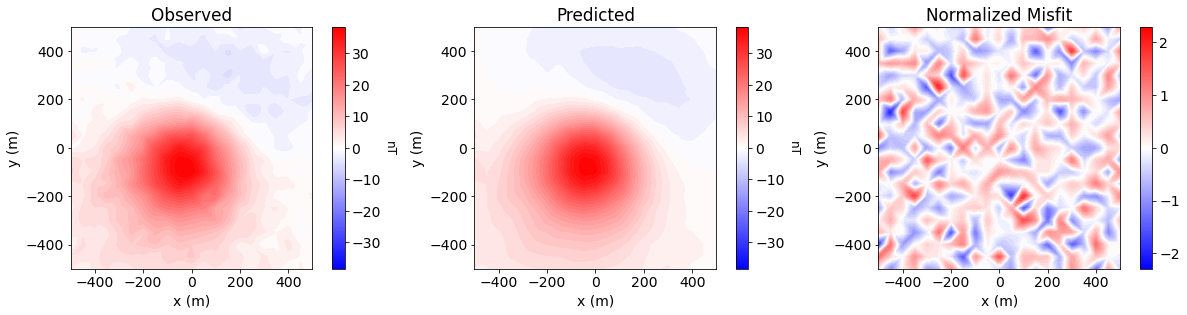

Plotting Data Misfit#
Show code cell source
data_array = np.c_[mag_data.dobs, dpred, (mag_data.dobs - dpred) / mag_data.standard_deviation]
fig = plt.figure(figsize=(17, 4))
plot_title = ["Observed", "Predicted", "Normalized Misfit"]
plot_units = ["nT", "nT", ""]
ax1 = 3 * [None]
ax2 = 3 * [None]
norm = 3 * [None]
cbar = 3 * [None]
cplot = 3 * [None]
v_lim = [
np.max(np.abs(mag_data.dobs)),
np.max(np.abs(mag_data.dobs)),
np.max(np.abs(data_array[:, 2]))
]
for ii in range(0, 3):
ax1[ii] = fig.add_axes([0.33 * ii + 0.03, 0.11, 0.25, 0.84])
cplot[ii] = plot2Ddata(
xyz,
data_array[:, ii],
ax=ax1[ii],
ncontour=50,
clim=(-v_lim[ii], v_lim[ii]),
contourOpts={"cmap": "bwr"}
)
ax1[ii].set_title(plot_title[ii])
ax1[ii].set_xlabel("x (m)")
ax1[ii].set_ylabel("y (m)")
ax2[ii] = fig.add_axes([0.33 * ii + 0.27, 0.11, 0.01, 0.84])
norm[ii] = mpl.colors.Normalize(vmin=-v_lim[ii], vmax=v_lim[ii])
cbar[ii] = mpl.colorbar.ColorbarBase(
ax2[ii], norm=norm[ii], orientation="vertical", cmap=mpl.cm.bwr
)
cbar[ii].set_label(plot_units[ii], rotation=270, labelpad=15, size=12)
plt.show()

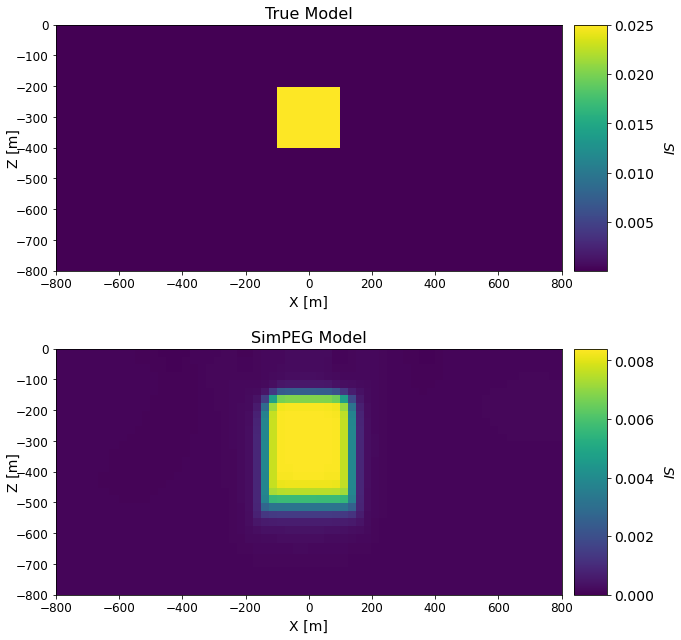

Comparing the True Model and Recovered Model#
Show code cell source
fig = plt.figure(figsize=(9, 9))
font_size = 14
models_list = [true_model, simpeg_model]
titles_list = ['True Model', 'SimPEG Model']
ax1 = 2*[None]
cplot = 2*[None]
ax2 = 2*[None]
cbar = 2*[None]
for qq in range(0, 2):
ax1[qq] = fig.add_axes([0.1, 0.55 - 0.5*qq, 0.78, 0.38])
cplot[qq] = mesh.plot_slice(
models_list[qq], normal='Y', ind=int(mesh.shape_cells[1]/2), grid=False, ax=ax1[qq]
)
cplot[qq][0].set_clim((np.min(models_list[qq]), np.max(models_list[qq])))
ax1[qq].set_xlim([-800, 800])
ax1[qq].set_ylim([-800, 0])
ax1[qq].set_xlabel("X [m]", fontsize=font_size)
ax1[qq].set_ylabel("Z [m]", fontsize=font_size, labelpad=-5)
ax1[qq].tick_params(labelsize=font_size - 2)
ax1[qq].set_title(titles_list[qq], fontsize=font_size + 2)
ax2[qq] = fig.add_axes([0.9, 0.55 - 0.5*qq, 0.05, 0.38])
norm = mpl.colors.Normalize(vmin=np.min(models_list[qq]), vmax=np.max(models_list[qq]))
cbar[qq] = mpl.colorbar.ColorbarBase(
ax2[qq], norm=norm, orientation="vertical"
)
cbar[qq].set_label(
"$SI$",
rotation=270,
labelpad=20,
size=font_size,
)
plt.show()
