Reproduce: SimPEG OcTree#
Simulating Transient Response over a Conductive Sphere#
Here we simulate the transient response from a conductive sphere in a vacuum. The sphere has a conductivity of \(\sigma\) = 100 S/m. The center of the sphere is located at (0,0,-50) and has a radius of \(a\) = 8 m.
The transient response is simulated for x, y and z oriented magnetic dipoles at (-5, 0, 10). The x, y and z components of H and dB/dt are simulated at (5, 0, 10). However, we only plot the data for horizontal coaxial, horizontal coplanar and vertical coplanar geometries.
SimPEG Package Details#
Link to the docstrings for the simulation. The docstrings will have a citation and show the integral equation.
Reproducing the Forward Simulation Result#
We begin by loading all necessary packages and setting any global parameters for the notebook.
Show code cell source
from discretize.utils import mkvc, refine_tree_xyz, ndgrid
from discretize import TreeMesh
import SimPEG.electromagnetics.time_domain as tdem
from SimPEG import maps
from SimPEG.utils import model_builder
from pymatsolver import Pardiso
import numpy as np
import scipy.special as spec
import matplotlib as mpl
import matplotlib.pyplot as plt
mpl.rcParams.update({"font.size": 14})
write_output = True
A compressed folder containing the assets required to run the notebook is then downloaded. This includes mesh and model files for the forward simulation.
Show code cell source
# Download .tar files
Extracted files are then loaded into the SimPEG framework.
Show code cell source
rootdir = './../../../assets/tdem/sphere_vacuum_conductive_fwd_simpeg/'
meshfile = rootdir + 'octree_mesh.txt'
modelfile = rootdir + 'model.con'
mesh = TreeMesh.readUBC(meshfile)
sigma_model = TreeMesh.readModelUBC(mesh, modelfile)
D:\Documents\Repositories\discretize\discretize\mixins\mesh_io.py:594: FutureWarning: TensorMesh.readUBC has been deprecated and will be removed indiscretize 1.0.0. please use TensorMesh.read_UBC
warnings.warn(
D:\Documents\Repositories\discretize\discretize\utils\code_utils.py:217: FutureWarning: TreeMesh.readModelUBC has been deprecated, please use TreeMesh.read_model_UBC. It will be removed in version 1.0.0 of discretize.
warnings.warn(
Here, we define the survey geometry for the forward simulation.
Show code cell source
xyz_tx = np.c_[-5., 0., 10.] # Transmitter location
xyz_rx = np.c_[5., 0., 10.] # Receiver location
times = np.logspace(-5,-2,10) # Times
waveform = tdem.sources.StepOffWaveform(offTime=0.0)
# Receivers
receivers_list = [
tdem.receivers.PointMagneticField(xyz_rx, times, "x"),
tdem.receivers.PointMagneticField(xyz_rx, times, "y"),
tdem.receivers.PointMagneticField(xyz_rx, times, "z"),
tdem.receivers.PointMagneticFluxTimeDerivative(xyz_rx, times, "x"),
tdem.receivers.PointMagneticFluxTimeDerivative(xyz_rx, times, "y"),
tdem.receivers.PointMagneticFluxTimeDerivative(xyz_rx, times, "z")
]
source_list = []
for comp in ['X','Y','Z']:
source_list.append(
tdem.sources.MagDipole(receivers_list, location=xyz_tx, orientation=comp, waveform=waveform)
)
# Define survey
survey = tdem.Survey(source_list)
Below, we plot the discretization and conductivity model used in the forward simulation.
Show code cell source
fig = plt.figure(figsize=(11, 8))
ind_active = mesh.cell_centers[:, 2] < 0
plotting_map = maps.InjectActiveCells(mesh, ind_active, np.nan)
log_model = np.log10(sigma_model[ind_active])
ax1 = fig.add_axes([0.14, 0.1, 0.6, 0.85])
mesh.plot_slice(
plotting_map * log_model,
normal="Y", ax=ax1, ind=int(mesh.hy.size / 2), clim=(np.min(log_model), np.max(log_model)),
grid=True
)
ax1.set_xlim([-50, 50])
ax1.set_ylim([-80, 20])
ax1.set_title("OcTree Conductivity Model: {} Cells".format(mesh.nC))
ax2 = fig.add_axes([0.76, 0.1, 0.05, 0.85])
norm = mpl.colors.Normalize(
vmin=np.min(log_model), vmax=np.max(log_model)
)
cbar = mpl.colorbar.ColorbarBase(
ax2, norm=norm, orientation="vertical", format="$10^{%.1f}$"
)
cbar.set_label("Conductivity [S/m]", rotation=270, labelpad=15, size=12)
D:\Documents\Repositories\discretize\discretize\base\base_tensor_mesh.py:1036: FutureWarning: hy has been deprecated, please access as mesh.h[1]
warnings.warn(
Here we define the mapping from the model to the mesh and define the forward simulation.
Show code cell source
sigma_map = maps.IdentityMap(nP=mesh.nC)
simulation = tdem.simulation.Simulation3DMagneticFluxDensity(
mesh, survey=survey, sigmaMap=sigma_map, solver=Pardiso
)
time_steps = time_steps = [(5e-07, 40), (2.5e-06, 40), (1e-5, 40), (5e-5, 40), (2.5e-4, 40)]
simulation.time_steps = time_steps
D:\Documents\Repositories\discretize\discretize\utils\code_utils.py:247: FutureWarning: meshTensor has been deprecated, please use unpack_widths. It will be removed in version 1.0.0 of discretize.
warnings.warn(
Finally, we compute the predicted data.
Show code cell source
dpred = simulation.dpred(sigma_model)
dpred = dpred.reshape((3, 6, len(times)))
dpred = [dpred[ii, :, :].T for ii in range(0, 3)]
D:\Documents\Repositories\discretize\discretize\utils\code_utils.py:182: FutureWarning: TreeMesh.edgeCurl has been deprecated, please use TreeMesh.edge_curl. It will be removed in version 1.0.0 of discretize.
warnings.warn(message, Warning)
D:\Documents\Repositories\discretize\discretize\utils\code_utils.py:217: FutureWarning: TreeMesh.getFaceInnerProduct has been deprecated, please use TreeMesh.get_face_inner_product. It will be removed in version 1.0.0 of discretize.
warnings.warn(
D:\Documents\Repositories\discretize\discretize\utils\code_utils.py:217: FutureWarning: TreeMesh.getInterpolationMat has been deprecated, please use TreeMesh.get_interpolation_matrix. It will be removed in version 1.0.0 of discretize.
warnings.warn(
D:\Documents\Repositories\discretize\discretize\utils\code_utils.py:217: FutureWarning: TensorMesh.getInterpolationMat has been deprecated, please use TensorMesh.get_interpolation_matrix. It will be removed in version 1.0.0 of discretize.
warnings.warn(
If desired, we can export the data to a simple text file.
Show code cell source
if write_output:
fname_analytic = rootdir + 'dpred_octree.txt'
header = 'TIME HX HY HZ DBDTX DBDTY DBDTZ'
t_column = np.kron(np.ones(3), times)
dpred_out = np.c_[t_column, np.vstack(dpred)]
fid = open(fname_analytic, 'w')
np.savetxt(fid, dpred_out, fmt='%.6e', delimiter=' ', header=header)
fid.close()
Plotting Simulated Data#

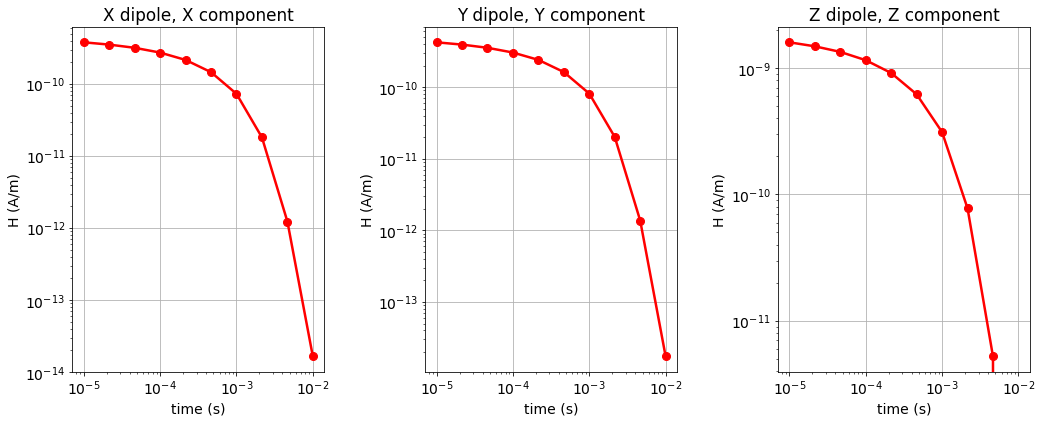

Here, we plot the H and dB/dt data for horizontal coaxial, horizontal coplanar and vertical coplanar geometries.
Show code cell source
fig = plt.figure(figsize=(14, 6))
lw = 2.5
ms = 8
ax1 = 3*[None]
for ii, comp in enumerate(['X','Y','Z']):
ax1[ii] = fig.add_axes([0.05+0.35*ii, 0.1, 0.25, 0.8])
ax1[ii].loglog(times, dpred[ii][:, ii], 'r-o', lw=lw, markersize=8)
ax1[ii].set_xticks([1e-5, 1e-4, 1e-3, 1e-2])
ax1[ii].grid()
ax1[ii].set_xlabel('time (s)')
ax1[ii].set_ylabel('H (A/m)'.format(comp))
ax1[ii].set_title(comp + ' dipole, ' + comp + ' component')

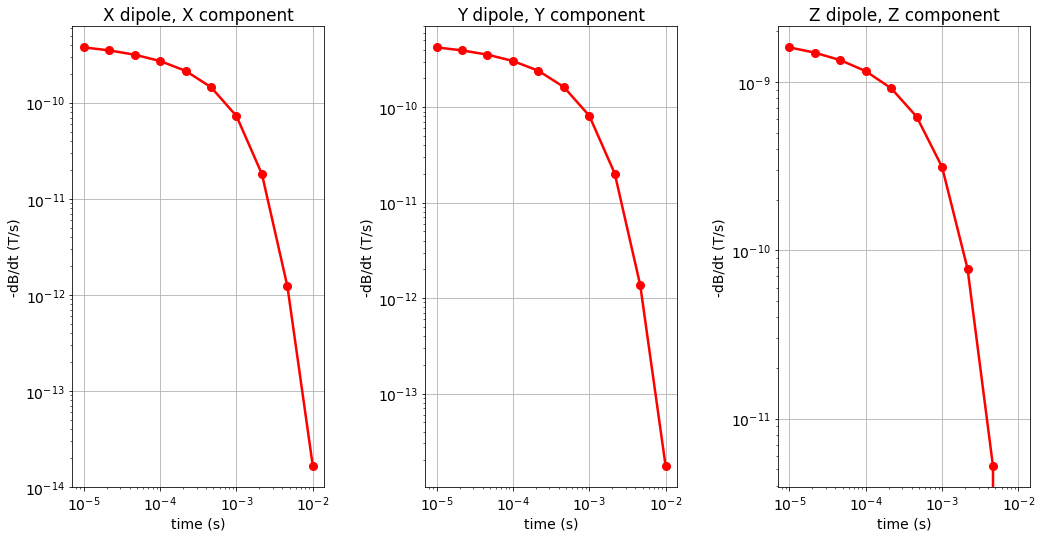

Show code cell source
fig = plt.figure(figsize=(14, 8))
lw = 2.5
ms = 8
ax1 = 3*[None]
for ii, comp in enumerate(['X','Y','Z']):
ax1[ii] = fig.add_axes([0.05+0.35*ii, 0.1, 0.25, 0.8])
ax1[ii].loglog(times, dpred[ii][:, ii], 'r-o', lw=lw, markersize=8)
ax1[ii].set_xticks([1e-5, 1e-4, 1e-3, 1e-2])
ax1[ii].grid()
ax1[ii].set_xlabel('time (s)')
ax1[ii].set_ylabel('-dB/dt (T/s)'.format(comp))
ax1[ii].set_title(comp + ' dipole, ' + comp + ' component')
