Inductive Source Simulation: Layered Earth (Conductive)#
Geoscientific Problem#
For this code comparison, transient TEM data were simulated over a conductive 1D layered Earth. From the top layer down we defined 3 layers with electrical conductivities \(\sigma_1\) = 0.01 S/m, \(\sigma_2\) = 0.1 S/m and \(\sigma_3\) = 0.01 S/m. The thicknesses of the top two layers were both 64 m.
The transient response was simulated for x, y and z oriented magnetic dipoles at (0, 0, 5). The x, y and z components of H and dB/dt were simulated at (10, 0, 5). However, we only plot the data for horizontal coaxial, horizontal coplanar and vertical coplanar geometries.
A figure illustrating the conductivity model and survey geometry is shown further down
Codes/Formulations Being Compared#
SimPEG 1D Formulation:
SimPEG 2D Cylindrical Mesh Formulation:
SimPEG 3D OcTree Formulation:
UBC TD Octree v1: TD OcTree v1 is a voxel cell TDEM forward modeling and inversion package developed by the UBC Geophysical Inversion Facility. This software is proprietary and can ONLY be acquired through appropriate academic or commerical licenses. The numerical approach of the forward simulation is described in the online manual’s theory section. If you have a valid license, there are instructions for reproducing the results (add link).
UBC TDRH v2: TDRH v2 is a voxel cell TDEM forward modeling and inversion package developed by the UBC Geophysical Inversion Facility. This software is proprietary and can ONLY be acquired through appropriate academic or commerical licenses. The numerical approach of the forward simulation is described in the online manual’s theory section. If you have a valid license, there are instructions for reproducing the results (add link).
Loading Assets Into the SimPEG Framework#
We start by importing any necessary packages for running the notebook.
Show code cell source
import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
from discretize import TreeMesh
from SimPEG import maps
mpl.rcParams.update({'font.size':14})
mu0 = 4*np.pi*1e-7
times = np.logspace(-5, -2, 10)
plot_simpeg_1d = True
plot_simpeg_cylmesh = False
plot_simpeg_octree = True
plot_ubc_tdoctree_v1 = False
plot_ubc_tdrh_v2 = True
Next we download the mesh, model and simulated data for each code.
Show code cell source
# For each package, download .tar files
The mesh, model and predicted data for each code are then loaded into the SimPEG framework for plotting.
Show code cell source
rootdir = './../../../assets/tdem/layered_earth_conductive_fwd'
mesh_simpeg = TreeMesh.read_UBC(rootdir+'_simpeg/octree_mesh.txt')
model_simpeg = TreeMesh.read_model_UBC(mesh_simpeg, rootdir+'_simpeg/model.con')
data_list = []
legend_str = []
style_list = ['k-o', 'b-o', 'r-o', 'g-o', 'c-o']
if plot_simpeg_1d:
fname = '_simpeg/dpred_1d.txt'
data_array = np.loadtxt(rootdir+fname, skiprows=1)[:, 1:]
data_array = np.reshape(data_array, (3, len(times), 6))
data_list.append(data_array)
legend_str.append('SimPEG 1D')
# if plot_simpeg_cylmesh:
# fname = '_simpeg/dpred_cylmesh.txt'
# data_list.append(np.loadtxt(rootdir+fname, skiprows=1))
# legend_str.append('SimPEG Cyl Mesh')
if plot_simpeg_octree:
fname = '_simpeg/dpred_octree.txt'
data_array = np.loadtxt(rootdir+fname, skiprows=1)[:, 1:]
data_array = np.reshape(data_array, (3, len(times), 6))
data_list.append(data_array)
legend_str.append('SimPEG OcTree')
if plot_ubc_tdoctree_v1:
fname = '_ubc_octree/fwd_v1/dpred0.txt'
temp = np.loadtxt(rootdir+fname)[:, 7:]
temp = np.c_[times, temp]
data_list.append(temp)
legend_str.append('TD OcTree v1')
if plot_ubc_tdrh_v2:
fname1 = '_ubc_octree/fwd_v2_h/dpredFwd.txt'
fname2 = '_ubc_octree/fwd_v2_dbdt/dpredFwd.txt'
temp1 = np.reshape(np.loadtxt(rootdir+fname1)[:, -1], (3, 3, len(times)))
temp2 = np.reshape(np.loadtxt(rootdir+fname2)[:, -1], (3, 3, len(times)))
temp = np.transpose(np.concatenate([temp1, temp2], axis=1), (0, 2, 1))
data_list.append(temp)
legend_str.append('TDRH v2')
Geophysical Scenario#

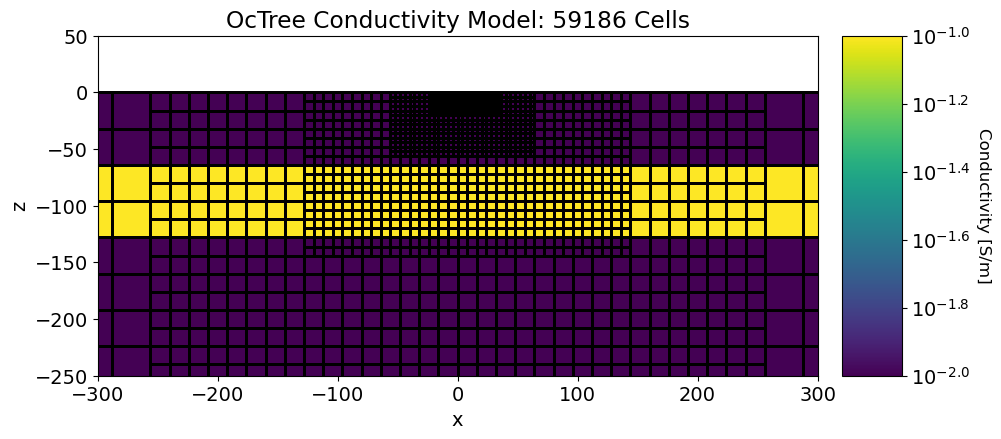

Here, we plot the conductivity model used in the forward simulation.
Show code cell source
fig = plt.figure(figsize=(12,4))
ind_active = mesh_simpeg.cell_centers[:, 2] < 0
plotting_map = maps.InjectActiveCells(mesh_simpeg, ind_active, np.nan)
log_model = np.log10(model_simpeg[ind_active])
ax1 = fig.add_axes([0.14, 0.1, 0.6, 0.85])
mesh_simpeg.plot_slice(
plotting_map * log_model,
normal="Y", ax=ax1, ind=int(mesh_simpeg.h[1].size / 2),
clim=(np.min(log_model), np.max(log_model)), grid=True
)
ax1.set_xlim([-300, 300])
ax1.set_ylim([-250, 50])
ax1.set_title("OcTree Conductivity Model: {} Cells".format(mesh_simpeg.nC))
ax2 = fig.add_axes([0.76, 0.1, 0.05, 0.85])
norm = mpl.colors.Normalize(
vmin=np.min(log_model), vmax=np.max(log_model)
)
cbar = mpl.colorbar.ColorbarBase(
ax2, norm=norm, orientation="vertical", format="$10^{%.1f}$"
)
cbar.set_label("Conductivity [S/m]", rotation=270, labelpad=15, size=12)
Plotting Simulated Data#

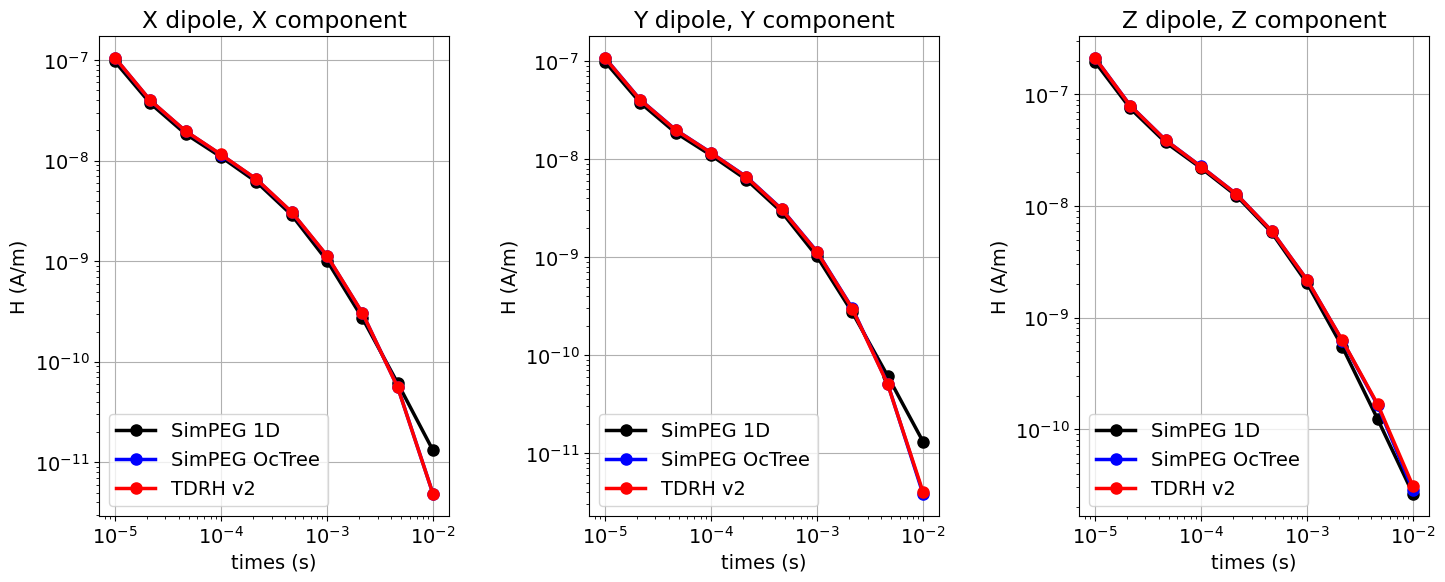

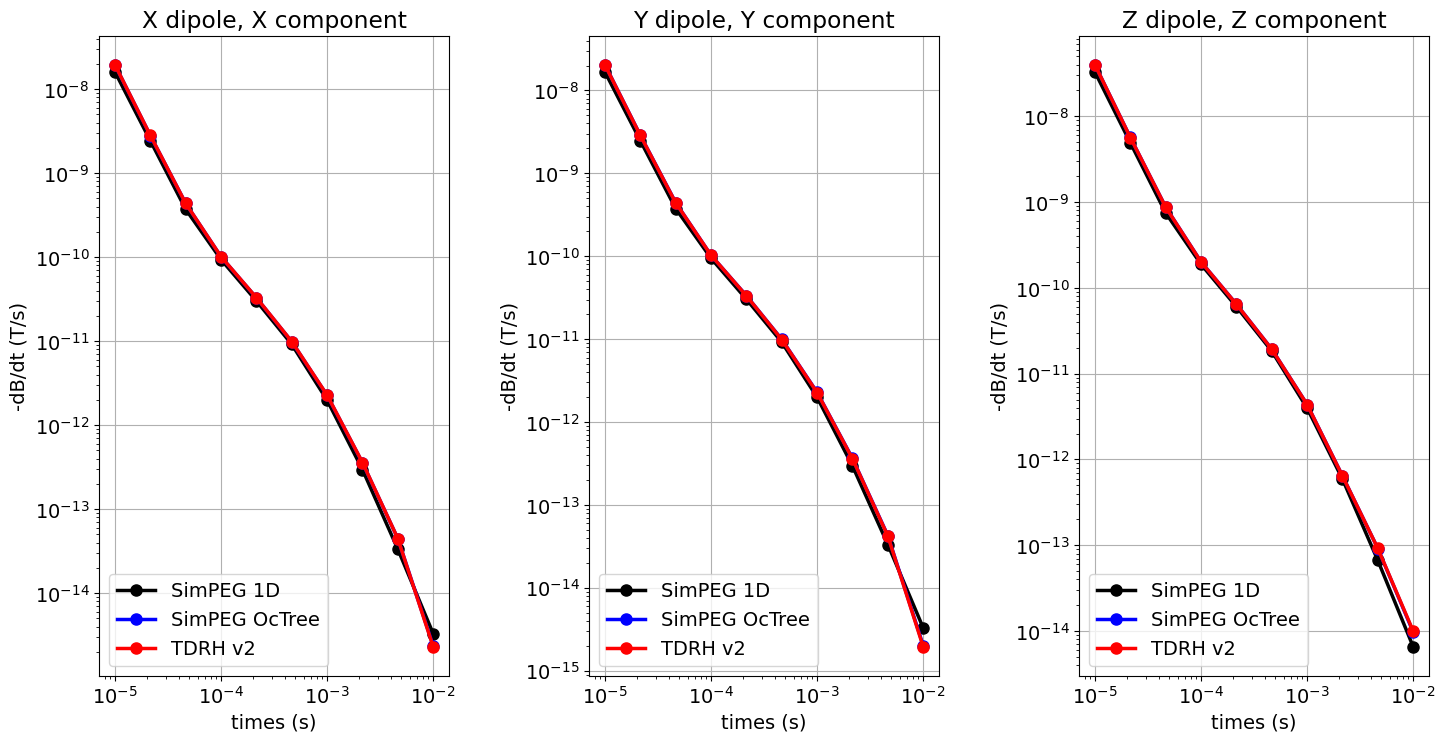

Here we plot the simulated data for all codes. We plot the only the data for horizontal coaxial, horizontal coplanar and vertical coplanar geometries.
Show code cell source
fig = plt.figure(figsize=(14, 6))
lw = 2.5
ms = 8
ax1 = 3*[None]
for ii, comp in enumerate(['X','Y','Z']):
ax1[ii] = fig.add_axes([0.05+0.35*ii, 0.1, 0.25, 0.8])
for jj in range(0, len(data_list)):
ax1[ii].loglog(times, data_list[jj][ii, :, ii], style_list[jj], lw=lw, markersize=ms)
ax1[ii].grid()
ax1[ii].set_xlabel('times (s)')
ax1[ii].set_ylabel('H (A/m)')
ax1[ii].set_title(comp + ' dipole, ' + comp + ' component')
ax1[ii].legend(legend_str,loc="lower left")
Show code cell source
fig = plt.figure(figsize=(14, 8))
lw = 2.5
ms = 8
ax1 = 3*[None]
for ii, comp in enumerate(['X','Y','Z']):
ax1[ii] = fig.add_axes([0.05+0.35*ii, 0.1, 0.25, 0.8])
for jj in range(0, len(data_list)):
ax1[ii].loglog(times, -data_list[jj][ii, :, ii+3], style_list[jj], lw=lw, markersize=ms)
ax1[ii].grid()
ax1[ii].set_xlabel('times (s)')
ax1[ii].set_ylabel('-dB/dt (T/s)')
ax1[ii].set_title(comp + ' dipole, ' + comp + ' component')
ax1[ii].legend(legend_str,loc="lower left")
